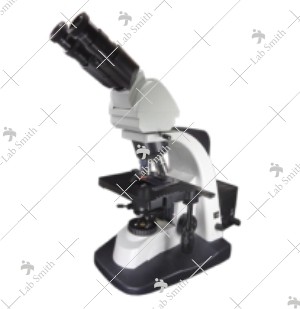

Binocular Pathological Research Microscope

SPECIFICATIONS

• Optical System: Infinity corrected optical system.

• Stand: Single mold sturdy stand with anti rust materials. Extended base for better stability.

• Magnification: 40x-1000x for visual observation.

• Eyepiece tubes: Arc Ergonomic Tiltable Head 0°-45°,360° rotatable, IPD 55 -75mm.

• Eyepieces: Widefield eyepieces 10x F. O.V. 22mm with Diopter adjustment, antifungal coated

• Nosepiece: Reverse angle quintuple nosepiece (Ball bearing type) with click stops and rubber grip.

• Stage: Double plate stage size 180 x 160mm, X/Y travel range 75mm x 50mm. Low drive right hand movement controls. Ceramic coated surface for scratch resistance. Double specimen holder clip.

• Objectives: QVSTi series Infinity Corrected DIN Plan Achromatic Long Working Distance objectives 4x (N.A. 0.10,W.D. 25mm) , 10x (N.A. 0.25,W.D. 6.7mm) , 20x (N.A. 0.45,W.D. 3.3mm) , 40x (spring loaded, N.A. 0.65,W.D. 0.6mm ), 100x (spring loaded, oil, N.A. 1.25,W.D. 0.17mm) , antifungal coated

• Condenser: Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides

• Illumination: True Köhler illumination with halogen 12V-30W lamp with variable illumination control

• Coarse & Fine focusing : Coaxial coarse and fine focusing with cross roller guide for smooth operation, fine motion 2 ?m per rotation with maximum 2 micron scale increments.

• Electronics: Universal input 110V – 240V AC, 50/60 Hz. Built in voltage stabilizer

• Carrying Case: Styrofoam Packing

• Supplied with: User manual, Vinyl Dust cover, Cleaning cloth and 01 units Fuses

• Optional Accessories: Wooden carrying case, Trinocular Head, QUSP series DIN Semi-Plan objectives 20x, 60x SL, WF 15x,WF 20x,Pointers & Micrometer Reticules, Phase contrast, Polarizing, Fluorescence and Dark Field attachments, Digital USB Cameras (1.3MP,3MP, 5MP, 14MP) with in-built adaptors, Digital Cameras and DSLR Cameras with adaptors, Illumination System Halogen 6V 20W.
