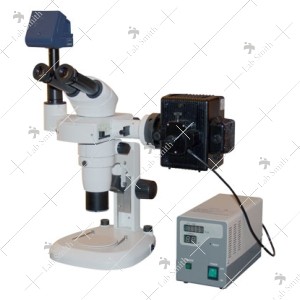

Advanced Stereo Zoom Microscope with Fluorescent Attachment
we are committed to provide you with world class optical system at reasonable prices i.e. a better cost to performance ratio. To fulfil this goal our dedicated R & D Team have introduced a new series of Stereoscopic Microscope LSRSMr-6, LSRSMr-8 and LSRSMr-10. The unmatched optical performance alongwith ergonomic design provides user a comfortable operation and minimum fatigue during long hours of observation. In addition flexible configuration allows easy ungrades through the addition of various accessories.
* Intermediate Modules like Co-axial illuminator, teaching head, drawing tube etc.
* High-eyepoint Eyepieces with built in diopter adjuster brings the image and reticle into focus, making it easier to view images as well as reducing eyestrain
* Low Position Focus Knob, for quick and effortless focusing thus eliminating the need to twist your shoulders while working on samples.Technical Specification Descriptions Item Code LSRSMr-10 LSRSMr-8 LSRSMr-6 Optical System Parallel Optics Zoom System Total Magnification* 4x-480x 4x-378x 4x-200x Objective Tubes RSAPO 0.5
RSAPO 1.0
RSP 1.5
RSP 2.0Plan APO 0.5
Plan APO 1.0x
Plan 1.5x
Plan 2.0xEyepiece Tubes Standard Binocular , Low Eye-Level Binocular. Eyepiece Inclination RSBI
RSBT20° (Standard Binocular and Low Eye-Level Binocular)
0°-30°(Tilting Binocular)Inter-Pupillary Distance 48-75mm.(1.9" - 3.0") Eye-Pieces with Diopter Adjustment RSE 10
RSE 10i
RSE 15
RSE 20
RSE 30WF10X (F.N.22)
WF10X (F.N.24)
WF15X (F.N.16)
WF20X (F.N.12.5)
WF30X (F.N.7.0)Zoom Range 0.8X-8X 0.8X-6.4X 0.8X-5X Zoom Ratio 1:10 1:8 1/6.3 Illumination Systems RSMLED
RSMLFS
RSMLCL
RSMLFLEpi-illumination, Incident & Trensmitted LED, Intensity/ Brightness control, Fibre optic light source with single or double flexible light pipes. Co-axial illuminator 12v-100w Halogen circular Fluorescent illuminator. Stands RSMST
RSMCX
RSMGMPlan Focusing Stand
Co-axial coarse and fine focusing Stand
Gemological StandCamera Attachment RSMP1
RSMP2Single Camera tube
Double Camera tubeOptional Accessories Dark Filed Attachment, Articulated Stand, Camera System, Analysis Softwares etc. - Additional Information
-
