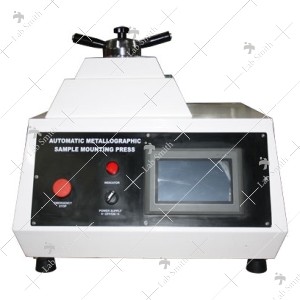

Fully Automatic Hot Mounting Machine LSRHM-5 Series

• Automatic metallographic specimen mounting presses a kind of full automatic mounting press, equipped with in-out water cooling system. It is suitable for the heat mounting (thermo hardening & thermoplastic) for all kinds of materials. After the parameters such as heating temperature, heat preserving time and applied force etc. are set up, put the specimen and mounting material into the machine, close the cover and press the start button, then the machine will finish the job automatically. It is not necessary for the operator to be on duty. According to different requirment of the material, there are four kind of moulds that can be chosen to meet the demands as per requirement.

Technical Specifications:

• Diameter of specimen :- Ø25mm, Ø30mm, Ø40mm, Ø50mm
• Cooling method :- Water cooling
• Power Supply :- Single phase, 220V, 50Hz
• Max. power consumotion :- 1800W
• Setting range of system pressure intensity :- 0-2Mpa
• Temperature setting range :- 0-300°C
• Heat preserving time :- 0-99m-99s
• Dimensions :- 615x510x500 cm
• Net weight :- 110kg
