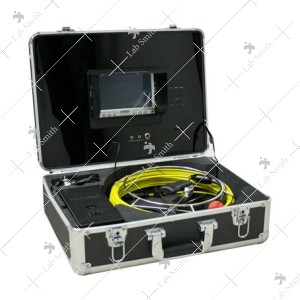

Video Inspection Boroscope LSRSB-20M

LSRSB-20M is a Video Inspection Boroscope. It is a CCD camera not CMOS, very sharp image. It is specially designed for pipe and wall activities such as pipe inspection and wall inspection. It is a professional, complete video camera system for sewer drain pipe snake inspection as well as other applications that not reached by human eyes.

 Features:-

1. High-quality CCD color video camera with 1/3" Sharp CCD.

2. Waterproof camera with waterproof metal body

3. Bright illuminated LEDs for working under totally darkness.

4. 20m (66ft) heavy-duty srigid nake anti-corrosion cable.

5. 7" TFT LCD color monitor with sunvisor for bright outside environment.

6. 12VDC/4.5AH/20HR re-chargable battery with AC adpter charger.

7. Can be operated both by battery or AC power.

8. Metal carry case for easy transportation.

Camera Specifications:-

1. Image sensor: 1/3" Sharp color CCD

2.  Diameter of camera 22 mm

3. Color system: PAL/NTSC both available

4. Effective pixels: 628x582(PAL)/628x512(NTSC)

5. Horizontal resolution: 420TVL

6. While Balance: auto

7. AGC: Auto

8. Angle of view: 92°

9. Number illuminated LEDs: 8 pcs

10. Operation temp: -20~+75 RH95% Max.

11. Storage tempe: -40~+85 RH95% Max.

12. Rigid snake cable length: 20M (66ft)

Monitor Specifications:

1. New TFT LCD panel, high brightness and contrast.

2. Display diagnal size: 7".

3. Display mode: 16:9.

4. Contrast: 300:1.

5. Resolution: 320×240, 640×480 .

Applications

1. Blocked / Slow Draining Plumbing.

2. Wall / Wire Inspection

3. Home Owners Inspection
