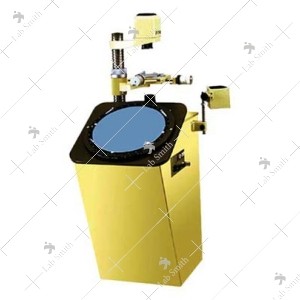

Profile Projector LSRPP-33

• Screen:- Antiglare hard glass screen, graduated & rotatable through 360° having least count 1 minute of an arc. Provided with four clips to hold overlay charts and drawings.
• Mirrors:- Optically true with surface hard coated to ensure optimum light reflection for best image contrast, long life and edge to edge sharpness on the projection screen.
• Contour Illumination:- Contour Illumination is provided with a 24V/150W halogen lamp having a built in condenser system. The illumination can be adjusted through a solid state transformer.
• EPI-Illumination:- A Specially designed 12V/100W halogen light ensures uniform surface illumination system for the above. This provides shadow less light on the optical axis for inspection of cavities etc.
• Electrical:- Mains input 220-240 volts AC having built in transformers, On-Off Switch, variable intensity controller for both illumination system, indicator and glass fuse.
• Accuracy:- Projection accuracy ± 0.1% for contour illumination and ± 0.15% for surface illumination.
• Screen Size:- 350mm
• Lenses:- 10x Objective (Standard)
• Work Stage
• Over all Size:- 150mm x 150mm
• Cross Movement:- 50mm x 50mm (without measuring units)
• Measurement:- By Standard micrometer heads 0-25mm
• Least count:- 0.01mm
• Standard Accessories:- Supplied complete as above, with standard multilayer coated objective, spare bulb, a vinyl cover and operating instructions manual.
• Optional Accessories:- Objectives 20x and 50x, V-Block with clamp, Swivel Center Support Holder, Digital Readout System, Digital Protractor, Work Stage, Calibrated Glass Scales, Standard Overlay Charts etc.
