Profile Projector

More Views

Code:

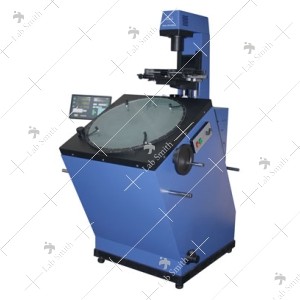

Profile Projector LSRPP-60

Screen Diameter:- 600mm.
Work Stage:- 350mm x 200mm.
Stage Travel X-Y Axis:- 200mm x 100mm.
Focussing Range:- 125mm.
Protecor Screen:- 360° Rotation with 2 minutes vernier resolution
Standard Magnification:- 10X
Optional Magnification:- 20X, 25X, 50X & 100X
Magnification Accuracy:- ± 0.05% on contour and ± 0.1% on surface
Lens Mounting:- 3 Turret type for safety and easy use.
Table Top Area:- With T-slot (Helixable for 15^o either side).
Resolution:- 0.001mm.
Measuring System:- With Mechanical Micrometer 0-25mm / Digital Read Out/
Data Processor (Selectable), (Optional PC based Software)
Illumination:- 24V, 150W Halogen, Forced Air Cooled, Light Intensity controller for variable backgrounds.
Filter Color:- Green
Power Supply:- AC Single Phase 230V, 50Hz.
Standard Accessories:- Supplied complete as above, with standard multilayer coated objective, spare bulb,a vinyl cover and operating instructions manual.

Catalogue No

LSRPP-60

Description

Profile Projector LSRPP-60

Screen Diameter:- 600mm.
Work Stage:- 350mm x 200mm.
Stage Travel X-Y Axis:- 200mm x 100mm.
Focussing Range:- 125mm.
Protecor Screen:- 360° Rotation with 2 minutes vernier resolution
Standard Magnification:- 10X
Optional Magnification:- 20X, 25X, 50X & 100X
Magnification Accuracy:- ± 0.05% on contour and ± 0.1% on surface
Lens Mounting:- 3 Turret type for safety and easy use.
Table Top Area:- With T-slot (Helixable for 15^o either side).
Resolution:- 0.001mm.
Measuring System:- With Mechanical Micrometer 0-25mm / Digital Read Out/
Data Processor (Selectable), (Optional PC based Software)
Illumination:- 24V, 150W Halogen, Forced Air Cooled, Light Intensity controller for variable backgrounds.
Filter Color:- Green
Power Supply:- AC Single Phase 230V, 50Hz.
Standard Accessories:- Supplied complete as above, with standard multilayer coated objective, spare bulb,a vinyl cover and operating instructions manual.

Catalogue No

LSRPP-60
