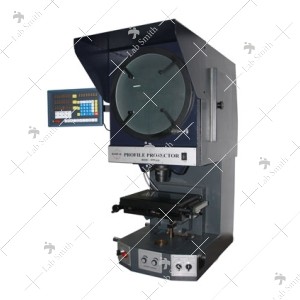

Profile Projector LSRPP-350


Compact light weight Table Top with easy operations. 360mm dia. screen with 90° cross line & chart holders. Projection Light Source with 24V/150W Halogen Lamp. Double Oblique Light Source for Surface Illumination Double Oblique Light source for Surface Illumination throught 10 watt LED bulbs.. Motorised Focussing with 60mm focusing range. High Quality objective lenses. Optical distortion below 0.15%.
 Standard magnification : 10x, Optional : 10x, 20x, 50x and 100x. High Quality European made objective lenses, Optical distortion below 0.1%. Optional Work Tables for Micrometer Heads & for linear scales with Digital Readout. Cooling by built-in noiseless and vibration free fan. Available in 110V & 220V through low voltage transformers.
PROJECTION CAPACITY
  Contour Illumination Surface Illumination
Magnification 10x 20x 50x 100x 10x 20x 50x 100x
View Field Diameter 36 18 7.2 3.6 36 18 7.2 3.6
Working Distance 115 95 46 35 115 95 46 35

 MODEL NO. & SPECIFICATIONS
Model No. LSRPP-350 LSRPP-350DM LSRPP-350DR
X-Y Range 50x50mm 50x50mm 200x100mm
Effective Table Area 125x125mm 125x125mm 275x180mm
Measuring Unit Micrometer Heads Digital Micrometer Heads Built in Linear Scales
Resolution 0.01mm 0.01mm 0.001mm/ 0.00005"
X-Y Counter No No Yes
Angle Counter Optional Optional No
Optical Edge Detector No
Rotary Measuring
Stage		 Yes Yes Optional
Table Size 150x150mm 150x150mm 310x250mm
Maximum Workpiece height 116mm 116mm 110mm
RPP-Software No No No
Dimensions/Weight 50x84x104cm/150 Kgs.



Description

Details

Profile Projector LSRPP-350


Compact light weight Table Top with easy operations. 360mm dia. screen with 90° cross line & chart holders. Projection Light Source with 24V/150W Halogen Lamp. Double Oblique Light Source for Surface Illumination Double Oblique Light source for Surface Illumination throught 10 watt LED bulbs.. Motorised Focussing with 60mm focusing range. High Quality objective lenses. Optical distortion below 0.15%.
 Standard magnification : 10x, Optional : 10x, 20x, 50x and 100x. High Quality European made objective lenses, Optical distortion below 0.1%. Optional Work Tables for Micrometer Heads & for linear scales with Digital Readout. Cooling by built-in noiseless and vibration free fan. Available in 110V & 220V through low voltage transformers.
PROJECTION CAPACITY
  Contour Illumination Surface Illumination
Magnification 10x 20x 50x 100x 10x 20x 50x 100x
View Field Diameter 36 18 7.2 3.6 36 18 7.2 3.6
Working Distance 115 95 46 35 115 95 46 35

 MODEL NO. & SPECIFICATIONS
Model No. LSRPP-350 LSRPP-350DM LSRPP-350DR
X-Y Range 50x50mm 50x50mm 200x100mm
Effective Table Area 125x125mm 125x125mm 275x180mm
Measuring Unit Micrometer Heads Digital Micrometer Heads Built in Linear Scales
Resolution 0.01mm 0.01mm 0.001mm/ 0.00005"
X-Y Counter No No Yes
Angle Counter Optional Optional No
Optical Edge Detector No
Rotary Measuring
Stage		 Yes Yes Optional
Table Size 150x150mm 150x150mm 310x250mm
Maximum Workpiece height 116mm 116mm 110mm
RPP-Software No No No
Dimensions/Weight 50x84x104cm/150 Kgs.
