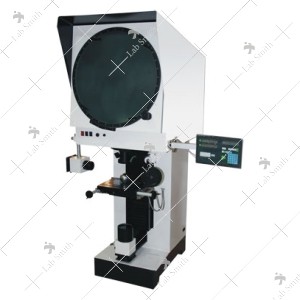

Profile Projector

More Views

Code:

Profile Projector LSRPP-500V

Screen Diameter:- 500mm
Work Stage:- 350 x 200mm
Stage Travel X-Y axis:- 150 x 100mm
Focussing Range:- 125mm
Magnification Standard:- 10x
Magnification Optional:- 20x, 25x, 50x, 100x
Protactor Screen:- 360° Rotation with 2 minutes vernier resolution
Magnification Accuracy:- ± 0.05% on contour and ± 0.1% on surface
Lens Mounting:- 3 turret type for safety and easy use.
Resolution:- 0.001mm
Measuring System:- With Mechanical micrometer 0-25mm/DRO/Data Processor (selectable),
(optional PC based software)
Illumination:- 24V, 150W Halogen, Forced Air cooled, Light intensity controller
Filter colour:- Green (Yellow - option)
Power Supply:- AC Single Phase 230V, 50Hz
Standard Accessories:- Projection lamps 2 nos, Operating manual, Calibrations Certificate etc.

Description

Profile Projector LSRPP-500V

Screen Diameter:- 500mm
Work Stage:- 350 x 200mm
Stage Travel X-Y axis:- 150 x 100mm
Focussing Range:- 125mm
Magnification Standard:- 10x
Magnification Optional:- 20x, 25x, 50x, 100x
Protactor Screen:- 360° Rotation with 2 minutes vernier resolution
Magnification Accuracy:- ± 0.05% on contour and ± 0.1% on surface
Lens Mounting:- 3 turret type for safety and easy use.
Resolution:- 0.001mm
Measuring System:- With Mechanical micrometer 0-25mm/DRO/Data Processor (selectable),
(optional PC based software)
Illumination:- 24V, 150W Halogen, Forced Air cooled, Light intensity controller
Filter colour:- Green (Yellow - option)
Power Supply:- AC Single Phase 230V, 50Hz
Standard Accessories:- Projection lamps 2 nos, Operating manual, Calibrations Certificate etc.

Additional Information

Code	No
