Advanced Toolmaker Microscope with D.R.O.

More Views

Code:

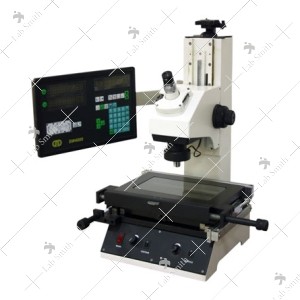

Advanced Toolmaker Microscope with D.R.O. LSRTM-901A

Large Advanced Toolmakers' Microscope base provides extra overall rigidity to the instrument. 300x200mm. size stage assembled on ball bearing guides for accurate & smooth strokes. Having fine motion adjustments.
Magnification - 30x (Standard), 45x Optional.
Objective - 2x achromatic, 3x optional.
Eyepiece - WF 15x with cross reticle.
Field of View - 6.5mm. diameter in 30x magnification.
Image - Erect image with working distance 67mm.
Observation - Monocular Tube, Inclined 1-30°.
Eyepiece Protector - Graduated 0-360° with adjustable vernier reading to 6min. Cross reticle incorporated in the Protector Head rotating in the optical axis of the microscope.
Stand - Large and Heavy base provided extra overall rigidity to the instrument.
Stage - 300mm. x 200mm. size assembled on ball bearing guide to provide accurate and smooth stage provided with D.R.O. (Digital Read Out) least count 1 micron to 5 micron.
Illumination - Sub-Stage Lamp emits transmitted light from a bottom source equipped with collimated green filter Halogen Light Circular LED light, Two knob for different illumination are arranged with variable control on front panel.
Dimensions - 460mm. x 480mm. x 550mm.

Catalogue No

LSRTM-901A

Description

Advanced Toolmaker Microscope with D.R.O. LSRTM-901A

Large Advanced Toolmakers' Microscope base provides extra overall rigidity to the instrument. 300x200mm. size stage assembled on ball bearing guides for accurate & smooth strokes. Having fine motion adjustments.
Magnification - 30x (Standard), 45x Optional.
Objective - 2x achromatic, 3x optional.
Eyepiece - WF 15x with cross reticle.
Field of View - 6.5mm. diameter in 30x magnification.
Image - Erect image with working distance 67mm.
Observation - Monocular Tube, Inclined 1-30°.
Eyepiece Protector - Graduated 0-360° with adjustable vernier reading to 6min. Cross reticle incorporated in the Protector Head rotating in the optical axis of the microscope.
Stand - Large and Heavy base provided extra overall rigidity to the instrument.
Stage - 300mm. x 200mm. size assembled on ball bearing guide to provide accurate and smooth stage provided with D.R.O. (Digital Read Out) least count 1 micron to 5 micron.
Illumination - Sub-Stage Lamp emits transmitted light from a bottom source equipped with collimated green filter Halogen Light Circular LED light, Two knob for different illumination are arranged with variable control on front panel.
Dimensions - 460mm. x 480mm. x 550mm.

Catalogue No

LSRTM-901A
