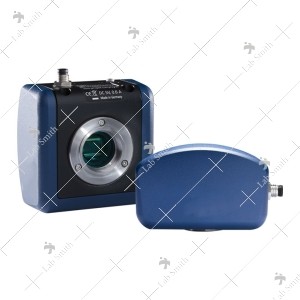

PROGRES GRYPHAX® SUBRA Camera
INFORMATION
PROGRES GRYPHAX® SUBRA is the first star of our new PROGRES GRYPHAX micro universe.Our bestsellers SpeedXTcore 5, CFcool, MFcool, C14plus are also compatible to PROGRES GRYPHAX® software.Key Facts - Full HD record at video speed
USB 3.0 interface
5.5 x 5.5 µm pixel size
2/3" sensor
12 BitSystem Requirements Operating System - WIN(min. 7)MAC (min. 10.8)LINUX Ubuntu (min. 14.04 LTS) Data interface - USB 3.0, no extra power supply needed Software (included in package) - PROGRES GRYPHAX® Image Sensor Sensor type | sensor square | diagonal - CMOS | 2/3" | 12.75 mm Pixel dimensions - 5.5 x 5.5 µm Color or monochrome - Color Transfer method | shutter mode - Progressive scan | Global shutter Full sensor resolution - 2048 x 1084 pixel Camera Camera resolution in LIVE mode - Full HD 1920 x 1080 pixel up to 2048 x 1084 pixel (30 fps) Camera resolution in RECORD mode - Full HD 1920 x 1080 pixel up to 2048 x 1084 pixel (30 fps) Exposure time min.-max. - 52 µs - 2 sec. Gain - max. 8 A/D conversion - 12 Bit (4096 grey values) Absolute sensitivity treshold* - 13.5 e- Saturation capacity* - 8000e- Dynamic range* - 56dB Filter - Filter Hardware trigger - OUT Power switch - Yes Optical interface - C-mount Power consumption - appr. 3W Dimensions - 85 x 75 x 50 mm Weight - appr. 400g Storage options - -20°C up to +70°C Operating temperature - +10°C up to +35°C non condensing Warranty - 24 months CE conformity / RoHS comformity - Yes - Additional Information
-
Additional Information
Code No - Reviews
-
