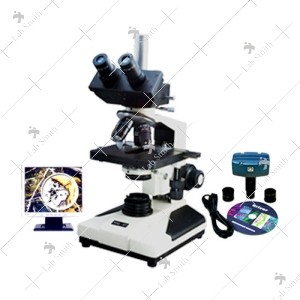

LSRXL-4T+3MP Cam+Structure Software

LSRXL-4T Biological Research Trinocular Microscopes Series meet a wide range of applications from Medical laboratory education to advanced research work. All the main operating functions of the microscopes are within easy reach so that extended observations are possible without eye fatigue or posture. The operational performance of the microscope is enhanced by combining modern design with high quality optics.

Observation Head - 45° inclined Trinocular head rotatable through 360°.
 Nosepiece - Quadruple nosepiece with accurate centering and positive click stops
 Stage - Built in graduated mechanical stage of 135x140mm for easy and smooth scan of specimen slide over range of 50x70mm
 Illumination - 6V-20W halogen lamp, 220/110Volts. Mirror attachment for working in day light
 Objectives - Achromatic DIN Size 4X - 10X- 40X SL and 100X SL Oil immersion
 Eyepieces - DIN Size Wide field WF 10X and H5X or H6X or H15X (any two pairs)
 Packing - The Microscopes are packed in full mould Styrofoam Boxes with Vinyl Cover, Duster, Cleaning Brush, Filter, Immersion Oil and Operating Manual.

Software :-

Video TesT-Structure 5.0 is flexible and powerful software solution that enable you to acquire measure and analyze your images. It can be used for processing both general light microscopy images and electronic microscopy images.

3MP Cam :-

- Sensor format : 1/2.5 inches
 - Pixel size : 2.2mmx2mm
 - Resolution : 2,592 x 1,944 pixels
 - Filter : RGB bayer pattern
 - Lens mount : C and CS-mount, include adapter ring.
   Max frame rate : 8 fps (2,592x1,944 pixels), 30 fps (640x480 pixels)
 - output RGB : 8-bit
 - Exposure control : auto/manual
   Exposure time : 1ms to 0.3s
 - White balance : auto/manual
 - Scan mode : progressive
 - Shutter : electronic rolling shutte
 - Sensitivity : 0.53V/lux-sec (550Nm)S/N ratio : 38
 5.1MP, 3MP, 1.3MP cameras are also available in same design with measurement software, But camera resolutions & specifications are depend upon model.
