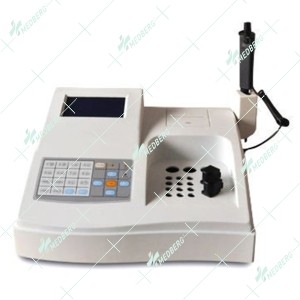

Coagulation Analyzer

More Views

Code:

Coagulation Analyzer

Description:

Advanced percentage analysis principles overcome the interfere with

Jaundice, hemolysis, and chyle, precision, testing on abnormal samples

Open reagent system consumption up to 20μL.

Special positioning system of testing cups, loading bracket，precision operating. Special measuring cell diaphragm system, stop other light interfere.

Provide 2 kind of analytical method of FIB

Can be set more than 5 point of standard curve, modify and saving parameters, variety item can be added.

Online startup and manual startup system

Incubate management system with audible signal hint

Built-in thermal printer with reference value range

Technical Specification

Model	MBCA-400
Detector channels:	4
Position for reagents ;	4
Position of Sample:	15, with a program timer
Light source :	470nm long –life cold light source
Sample consumption	20-40 μ l
Mini-reagent consumption	20μl
Homoiothermy controlling	37℃±0.3℃
Repeatability:	CV≤2%
Linear error:	r>0.98
Channel Consistency:	≤0.3%
Measurement start up	Online adding, auto timing, manual startup system
Memory:	10,000 results
Counting function	Can be converted on S, % PTR, INR, mg/d L
Printer:	Built in thermal printer
Display :	240*60 HB LCD display
Testing speed:	the testing time can be set, testing speed, PT240test/h, APTT 140 test/h
Working environment	Temperature 10℃-30℃, humidity≤70%
Power supply	220±22VAC, 50±1HZ,
Size :	370mm(L)370mm(w)120mm(W)
Weight :	8kg

Description

Coagulation Analyzer

Description:

Advanced percentage analysis principles overcome the interfere with

Jaundice, hemolysis, and chyle, precision, testing on abnormal samples

Open reagent system consumption up to 20μL.

Special positioning system of testing cups, loading bracket，precision operating. Special measuring cell diaphragm system, stop other light interfere.

Provide 2 kind of analytical method of FIB

Can be set more than 5 point of standard curve, modify and saving parameters, variety item can be added.

Online startup and manual startup system

Incubate management system with audible signal hint

Built-in thermal printer with reference value range

Technical Specification

Model	MBCA-400
Detector channels:	4
Position for reagents ;	4
Position of Sample:	15, with a program timer
Light source :	470nm long –life cold light source
Sample consumption	20-40 μ l
Mini-reagent consumption	20μl
Homoiothermy controlling	37℃±0.3℃
Repeatability:	CV≤2%
Linear error:	r>0.98
Channel Consistency:	≤0.3%
Measurement start up	Online adding, auto timing, manual startup system
Memory:	10,000 results
Counting function	Can be converted on S, % PTR, INR, mg/d L
Printer:	Built in thermal printer
Display :	240*60 HB LCD display
Testing speed:	the testing time can be set, testing speed, PT240test/h, APTT 140 test/h
Working environment	Temperature 10℃-30℃, humidity≤70%
Power supply	220±22VAC, 50±1HZ,
Size :	370mm(L)370mm(w)120mm(W)
Weight :	8kg
