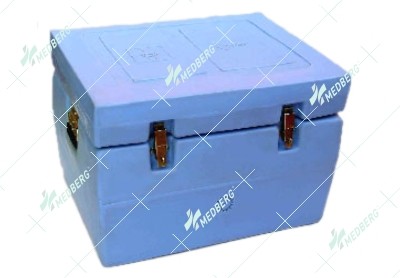

Large Cold Box, Long Range

Large Cold Box, Long Range

More Views

Large Cold Box, Long Range

Code:
Large Cold Box, Long Range

Description:
MODEL JACB-444L
TYPE Large Cold Box,
Long Range
Vaccine Storage Capacity 23.0 Litres
Weight - fully loaded 47 Kgs.
Weight - empty (with empty icepacks 22 Kgs.
External Surface Material LLDPE*
Internal Lining Material LLDPE*
Insulation Material CFC free Polyurethane
Insulation Thickness 100 mm
External Dimensions (L x W x H) 77 x 62 x 52 cms
Internal dimensions (L x W x H) 52 x 37 x 28 cms
Vaccine Storage Dimensions 45 x 30 x 18 cms
Lid type & Fixings Hinged
Number of Ice packs required 44
Number of Ice packs supplied 44
Ice-packs type E5/IP.2
Volume of Icepack 0.40 Litres
PERFORMANCE
Conforming to WHO Specifications
Cold Life Requirement as per WHO at 43 deg C ± 1 deg C without opening		 E4/CB.2

Min. 120 Hours
Actual Cold Life without opening 43 deg C ± 1 deg C as Tested by WHO approved Testing Lab, PSB, Singapore 144 Hours
(in house test)
SHIPPING DIMENSIONS
Quantity in each carton (Nos.) 1
Gross Weight (approx.) 25 Kgs.
Size of carton (L x W x H) (approx.) 78 x 64 x 54 cms
Volume of each carton (approx.) 0.27 CBM
No. of Units/20' container 110
No. of Units/40' container 225
No. of Units/40' High cube container 240

Description

Details

Large Cold Box, Long Range

Description:
MODEL JACB-444L
TYPE Large Cold Box,
Long Range
Vaccine Storage Capacity 23.0 Litres
Weight - fully loaded 47 Kgs.
Weight - empty (with empty icepacks 22 Kgs.
External Surface Material LLDPE*
Internal Lining Material LLDPE*
Insulation Material CFC free Polyurethane
Insulation Thickness 100 mm
External Dimensions (L x W x H) 77 x 62 x 52 cms
Internal dimensions (L x W x H) 52 x 37 x 28 cms
Vaccine Storage Dimensions 45 x 30 x 18 cms
Lid type & Fixings Hinged
Number of Ice packs required 44
Number of Ice packs supplied 44
Ice-packs type E5/IP.2
Volume of Icepack 0.40 Litres
PERFORMANCE
Conforming to WHO Specifications
Cold Life Requirement as per WHO at 43 deg C ± 1 deg C without opening		 E4/CB.2

Min. 120 Hours
Actual Cold Life without opening 43 deg C ± 1 deg C as Tested by WHO approved Testing Lab, PSB, Singapore 144 Hours
(in house test)
SHIPPING DIMENSIONS
Quantity in each carton (Nos.) 1
Gross Weight (approx.) 25 Kgs.
Size of carton (L x W x H) (approx.) 78 x 64 x 54 cms
Volume of each carton (approx.) 0.27 CBM
No. of Units/20' container 110
No. of Units/40' container 225
No. of Units/40' High cube container 240
