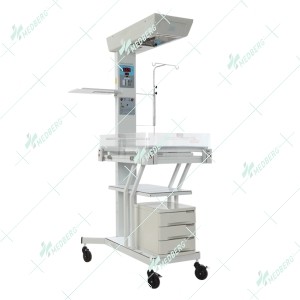

MRHW1101B Fixed Cradle + 3 Drawers

General Description

• Mobile Radiant Heat Warmer - Fixed Height
• Mounted on 4 swivel castors (100mm) - 2 castors with brake
• Baby tray with mattress along with head up/down facility and X-ray cassette holder
• Mattress density approx. 21-25 kg/m3 and removable, washable, water proof cover
• 6mm thick - Transparent acrylic drop down and lockable side panel
• Side tray for monitor and infusion rod for syringe pump/SS IV rod
• 2 shelves below baby bed for under surface Phototherapy and storage
• Under table plastic moulded 3 storage drawers
• FR grade moulded swivelling hood suspended above the table integrates heating element and overhead light
• Heating element – Ceramic heater (650 W) with parabolic reflector, protected by metallic grid

Temperature Controller B

• Big red LED display for skin temperature, set temperature & timer
• LED indicator for selected mode & alarm
• Bar-graph for heater power
• Integrated timer – 1 to 09 min with count-up feature
• Temperature range – skin: 34 to 38°C (user pre-settable)
• Monitoring of skin temperature by means of sensor, range: 30 to 42°C
• Control unit – auto over-temperature cut-off with audio-visual alarms according to pre-set temperature to avoiding overheating
• Display indicates system errors, sensor failure, alarm for high/low, over/under temperature for skin, heater failure, power control device failure.
• Audio-Visual alarm for power failure
