MRHW1104B Stand + Trolley

Code:

MRHW1104B Stand + Trolley

General Description

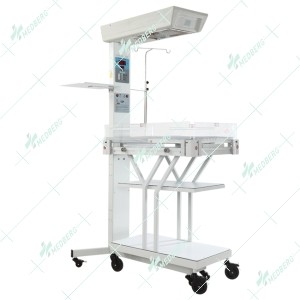

  • Mobile radiant heat warmer- Stand along with Infant Care Trolley
  • Stand mounted on 4 swivel castors (50mm) - 2 castors with brake
  • Side tray for monitor and infusion rod for syringe pump/SS IV rod
  • FR grade moulded swivelling hood suspended above the table integrates heating element and overhead light
  • Heating element – Ceramic heater (650 W) with parabolic reflector, protected by metallic grid
  • Trolley: Mounted on 4 swivel castors (100mm) - 2 castors with brake
  • Baby tray with mattress along with head up/down facility and X-ray cassette holder
  • Mattress density approx. 21-25 kg/m3 and removable washable water proof cover
  • 6mm thick transparent acrylic drop down and lockable side panel
  • 2 shelves below baby bed for under surface Phototherapy and storage

Temperature Controller B

  • Big red LED display for skin temperature, set temperature & timer
  • LED indicator for selected mode & alarm
  • Bar-graph for heater power
  • Integrated timer – 1 to 09 min with count-up feature
  • Temperature range – skin: 34 to 38°C (user pre-settable)
  • Monitoring of skin temperature by means of sensor, range: 30 to 42°C
  • Control unit – auto over-temperature cut-off with audio-visual alarms according to pre-set temperature to avoiding overheating
  • Display indicates system errors, sensor failure, alarm for high/low, over/under temperature for skin, heater failure, power control device failure.
  • Audio-Visual alarm for power failure
