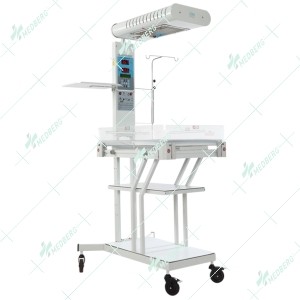

MRHW2102A Fixed Cradle

More Views

Code:

MRHW2102A Fixed Cradle

General Description

Mobile radiant heat warmer-fixed height
Mounted on 4 swivel castors (100mm) - 2 castors with brake
Baby tray with mattress along with head up/down facility and X-ray cassette holder
Mattress density approx. 21-25 kg/m3 and removable washable water proof cover
6mm thick - Transparent acrylic drop down and lockable side panel
Side tray for monitor and infusion rod for syringe pump/SS IV rod
2 shelves below baby bed for under surface Phototherapy and storage
Metallic, swivelling hood suspended above the table integrates heating element and overhead light
Heating element – Ceramic heater (650 W) with parabolic reflector, protected by metallic grid

Temperature Controller A

Big red LED display for skin and air temperature
LED indicator for selected mode
LCD for alarm messages, selected mode, timer display, heater power (%), etc.
Integrated timer – 1 to 59 min, with count-up and count-down feature
Temperature range – skin: 34 to 38°C (user pre-settable) air: room temperature to 39°C
Monitoring of skin temperature by means of sensor, range: 30 to 42°C
Heater output – 0 to 100% in increments of 5%
Control unit – Auto over-temperature cut-off with audio-visual alarms according to pre-set temperature to avoiding overheating
Display reports systems errors, sensor failure alarm and visual message on LCD for high/low, over/under temperature for skin and air, heater failure, power control device failure.
Audio-Visual alarm for power failure

Description

MRHW2102A Fixed Cradle

General Description

Mobile radiant heat warmer-fixed height
Mounted on 4 swivel castors (100mm) - 2 castors with brake
Baby tray with mattress along with head up/down facility and X-ray cassette holder
Mattress density approx. 21-25 kg/m3 and removable washable water proof cover
6mm thick - Transparent acrylic drop down and lockable side panel
Side tray for monitor and infusion rod for syringe pump/SS IV rod
2 shelves below baby bed for under surface Phototherapy and storage
Metallic, swivelling hood suspended above the table integrates heating element and overhead light
Heating element – Ceramic heater (650 W) with parabolic reflector, protected by metallic grid

Temperature Controller A

Big red LED display for skin and air temperature
LED indicator for selected mode
LCD for alarm messages, selected mode, timer display, heater power (%), etc.
Integrated timer – 1 to 59 min, with count-up and count-down feature
Temperature range – skin: 34 to 38°C (user pre-settable) air: room temperature to 39°C
Monitoring of skin temperature by means of sensor, range: 30 to 42°C
Heater output – 0 to 100% in increments of 5%
Control unit – Auto over-temperature cut-off with audio-visual alarms according to pre-set temperature to avoiding overheating
Display reports systems errors, sensor failure alarm and visual message on LCD for high/low, over/under temperature for skin and air, heater failure, power control device failure.
Audio-Visual alarm for power failure

Additional Information

Code	No
