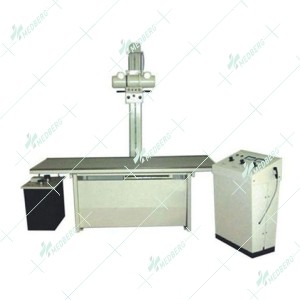

100mA Radiographic X-ray Machine

More Views

100mA Radiographic X-ray Machine

Code:

100mA Radiographic X-ray Machine JYSX0101

USE
 General radiography, Filter-ray-filter radiograph

 Unit Configuration
 Control, HT generator unit, Ht cable, X-ray tube unit, Radiographic table-X-ray source column, Collimator

 Function
 The unit can used for general radiography, Bucky radiography of body’s head, chest, foot and hand, bones in lying

 Feature
 1. meter-indicating
 2. single-table single tube
 3. single-phase, full wave rectification
 4. stationary anode x-ray tube assembly
 5. X-ray tube filament s voltage regulator, space charge compensator
 6. Radiograph plain table wimple structure and easy assembling

 MAIN TECHNICAL INDEXES

ITEM	CONTENTS	INDEX
Demand of power supply	Capacity	Two-phase 30KVA
	Voltage Frequency	380V/220V ±1050HZ ±0.5Hz
	Intemal resistance	2Ω(380V) 0.6 Ω(220V)
power supply	Adjustable range	380±10% at220V being adjustable continuously
Radiograph	Voltage	50-90KV
	current	Small focus: 15mA,Big focus:30mA 60mA 100mA
	time	0.04~6.35s 23grades together grading a according to R10 coefficient
High-voltage generator	Capacity	7KVA
	Max DC output voltage	90KV
	Max DC output current	100mA
X-Ray tube	Model	0XD4-2.9/100
X-Ray tube	Focus	Small focus 1.8×1.8mm big focus4.3×4.3mm
Radiographic	Length×width×height of bed surface	2000mm×665mm×700mm
	Moving range of bed surface	640mmin Length,200mm in breadth
table	Ray-filter of table	Travel in length ≥50mm
		Grid density N=28
		Convergence distance f.=100cm
		Grid ratio r=8
Column of X-ray tube unit	Moving Longitudinally along	1000mmor 1800mm
	Radiographic table	1000mmor 1800mm
	Distance to friend as moving up and down (along column)	650~1800mm
	Rotary around the center of cross arm	±180°
	Rotary around the shaft line of X-ray annular tubes	-10°~60°~ +120°
Max size of cassette		356mm×432mm(14×17)

Net  Weight: 600kg  Gross: 695kg  Packing Size: 230*112*111

Description

Details

100mA Radiographic X-ray Machine JYSX0101

USE
 General radiography, Filter-ray-filter radiograph

 Unit Configuration
 Control, HT generator unit, Ht cable, X-ray tube unit, Radiographic table-X-ray source column, Collimator

 Function
 The unit can used for general radiography, Bucky radiography of body’s head, chest, foot and hand, bones in lying

 Feature
 1. meter-indicating
 2. single-table single tube
 3. single-phase, full wave rectification
 4. stationary anode x-ray tube assembly
 5. X-ray tube filament s voltage regulator, space charge compensator
 6. Radiograph plain table wimple structure and easy assembling

 MAIN TECHNICAL INDEXES

ITEM	CONTENTS	INDEX
Demand of power supply	Capacity	Two-phase 30KVA
	Voltage Frequency	380V/220V ±1050HZ ±0.5Hz
	Intemal resistance	2Ω(380V) 0.6 Ω(220V)
power supply	Adjustable range	380±10% at220V being adjustable continuously
Radiograph	Voltage	50-90KV
	current	Small focus: 15mA,Big focus:30mA 60mA 100mA
	time	0.04~6.35s 23grades together grading a according to R10 coefficient
High-voltage generator	Capacity	7KVA
	Max DC output voltage	90KV
	Max DC output current	100mA
X-Ray tube	Model	0XD4-2.9/100
X-Ray tube	Focus	Small focus 1.8×1.8mm big focus4.3×4.3mm
Radiographic	Length×width×height of bed surface	2000mm×665mm×700mm
	Moving range of bed surface	640mmin Length,200mm in breadth
table	Ray-filter of table	Travel in length ≥50mm
		Grid density N=28
		Convergence distance f.=100cm
		Grid ratio r=8
Column of X-ray tube unit	Moving Longitudinally along	1000mmor 1800mm
	Radiographic table	1000mmor 1800mm
	Distance to friend as moving up and down (along column)	650~1800mm
	Rotary around the center of cross arm	±180°
	Rotary around the shaft line of X-ray annular tubes	-10°~60°~ +120°
Max size of cassette		356mm×432mm(14×17)

Net  Weight: 600kg  Gross: 695kg  Packing Size: 230*112*111
