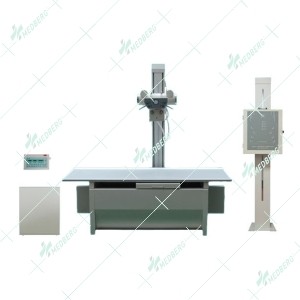

The Most Cost-Effective Medical X-ray Machine

1. 50KW // 30KHz: High frequency x-ray machine can cover all body parts, undertake general radiography and obtain clear images.

2.  There is no other x-ray machine more cost-effective in the world. Moreover, you will sure be pleasantly surprised by the ultra-low price.

3.  If you have mobile DR flat, that will be fantastic! A slight upgrade can help you realize direct digital imaging.

4.  Its solid & streamline shape, as well as its ultra-long service life, make it well worth the cost.

5.  With microcomputer control program and auto-generation of radiography conditions, It’s easy to operate and has good repeatability.

    JYSX0315 Features

    1. High precision control mode through analog & digital double-loop control: Adopting HF (≥30kHz) inverter circuit combined with analog & digital double-loop control mode (composed of microprocessor and PWM dedicated chip), in order to achieve high-precision high voltage output. Though power supply fluctuation may appear, steady x-rays can still be output.

    2. High-precision control in radiography time: Minimum exposure time is 0.0025 second, and quick radiography is accessible at any time without the influence of power phase, thus high-quality images are easily achieved and x-ray radiation to patients is reduced.

    3. High-precision tube current control: X-ray tube current using two high-frequency converter heating which is controlled by the microprocessor high-speed A / D converter sampling tube current calculate in real-time. The microprocessor control the allowed load of the X-ray tube. It can set the most suitable radiography condition for the x-ray tube.

    4. Various setting ways of Radiography conditions: you can select kV, mA and mAs to set the conditions for radiography, the program of the body parts is efficient, simplify operation., limit the select of three parameters for protecting the capacity according to the capacity of x-ray tube.

    5. Self-protection, self-diagnosis: Once the malfunction happen, generator start self-protection, give an alarm. The malfunction can be detected via error code, convenient for maintenance.

    6. Compact structure, Reduces installation space

JYSX0315 & YSX0314 Technical index of main component

 Product  Configuration
