4kW High frequency portable & mobile vet x-ray unit
1. JYSX040-A Application
Our 4kW portable high frequency x-ray unit is mainly suitable for extremities check, especially for rescues or diagnosis in field operation sites, battlefields, stadiums, vet clinics, etc.
2. JYSX040-A Features
1) Simple & light structure;
2) 6-segment LED display;
3) Anatomical memories for 24 selection program;
4) Double-loop (analog & digital) high precision control mode;
5) High precision control in tube voltage & current;
6) Self-protection & auto-diagnosis available when malfunction occurs.
3. JYSX040-A Specifications
Model |
JYSX040-A 4KW |
Power supply |
Voltage: AC220V± 10%, 50/60Hz ± 1Hz |
Capacity: ≥5kVA; |
Internal resistance: ≤0.5Ω |
Maximum output power |
P =110kV×36mA=4kW |
Nominal output power |
100kV,40mA,0.1s,4kW |
Frequency |
≥40kHz |
kV adjustable range |
40kV~110kV, continuous regulation, stepping 1kV |
mA adjustable range |
36mA~70mA |
mAs adjustable range |
1mAs-200mAs,continuous regulation |
Exposure time adjustable range |
0.04s~3.2s |
X ray tube |
Focus: 0.6/1.5mm, |
Thermal Capacity: 76kHU |
Anatomical program |
24 memory choices available |
Accessories |
Standard: manual switch, cable |

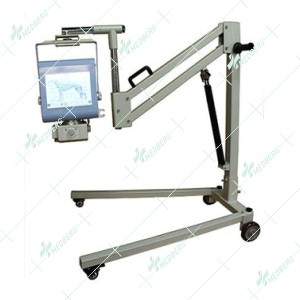

Optional: mobile steel support |
