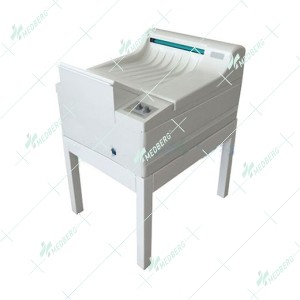

Hot sale automatic x-ray film processor

More Views

Hot sale automatic x-ray film processor

Code:
Hot sale automatic x-ray film processor JYSX1501

Features:
1.Applicability: Suitable for handling the various models of the X-ray specifications,CT,MRT, and other film
2.Microcomputer: The most convenient way of regulating the various washing-parameter
3.Anti-oxidation :Effective prevents drugs are oxidized to produce high-definition image
4.High Standards:Precise temperature and speed control ,sinnificantiy,fixing set temperature and the actural temperature differenceis not more than 0.3°C
5.High economic: Standby function which lowered the water and electricity consumption at anytimebe able to satisfy the requirements to washing film

Model JYSX1501
Operation conditions:
Voltage 220V±10%,50/60Hz, 8.8A single-phase
Dryer temp 5~25℃
Ambient humidity  less than 60%
Power of the whole machine:  less than 2kw
Technical specifications:
Type desktop  Console model
Rinse width  3"×6"~14"×17"
 Process time  105/135/165s
 Develop time 25/35/45s
Film feed mode U-slot
Film sensing mode micro switch
 Develop temperature adjustable 28 -37℃(plus or minus 0.3 )
Developing capacity 80p/h (14"*17"); 145p/h(10"*12")
Dryer temperature  40~65℃
 Channel volume  Develop\Fixer\Water\each 5.2L
Washing Control Water 2~8L/ minute when rinse
Water developing control mode  solenoid valve control
Anti-oxidation function                  60mins interval
Anti-crystallization 30mins interval
 Replenishment  Auto. /manual 20~200ml/for 0.5s. Q. M
Packing size 1130*775*750
Goss weight 100KG

Description

Details

Hot sale automatic x-ray film processor JYSX1501

Features:
1.Applicability: Suitable for handling the various models of the X-ray specifications,CT,MRT, and other film
2.Microcomputer: The most convenient way of regulating the various washing-parameter
3.Anti-oxidation :Effective prevents drugs are oxidized to produce high-definition image
4.High Standards:Precise temperature and speed control ,sinnificantiy,fixing set temperature and the actural temperature differenceis not more than 0.3°C
5.High economic: Standby function which lowered the water and electricity consumption at anytimebe able to satisfy the requirements to washing film

Model JYSX1501
Operation conditions:
Voltage 220V±10%,50/60Hz, 8.8A single-phase
Dryer temp 5~25℃
Ambient humidity  less than 60%
Power of the whole machine:  less than 2kw
Technical specifications:
Type desktop  Console model
Rinse width  3"×6"~14"×17"
 Process time  105/135/165s
 Develop time 25/35/45s
Film feed mode U-slot
Film sensing mode micro switch
 Develop temperature adjustable 28 -37℃(plus or minus 0.3 )
Developing capacity 80p/h (14"*17"); 145p/h(10"*12")
Dryer temperature  40~65℃
 Channel volume  Develop\Fixer\Water\each 5.2L
Washing Control Water 2~8L/ minute when rinse
Water developing control mode  solenoid valve control
Anti-oxidation function                  60mins interval
Anti-crystallization 30mins interval
 Replenishment  Auto. /manual 20~200ml/for 0.5s. Q. M
Packing size 1130*775*750
Goss weight 100KG
