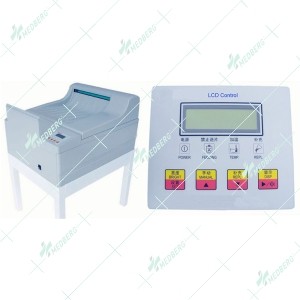

Medical LCD control X-ray film processor

More Views

Medical LCD control X-ray film processor

Code:

Medical LCD control X-ray film processor JYSX1503 / JYSX1505

 *Entire english menu, Large LCD screen on the washing procedures and data transparent.
 *With automatic monitoring equipment faults, and the use of english as displayed on the panel.
 *Wind road efficient drying system, euan fast processor, the same bright dry up.
 *Non-contact-oriented system to avoid the losers-film-flowers, dicing phenomenon.
 *Machines designed to take full account of the chemical cycle efficiency. The Ad Hol anti-oxidation are covered, together with precise irrigation area added automatic monitoring system so that the unit’s work performance and quality of irrigation to achieve quality and efficient level.

 Technology parameters:

Model of processor :	JYSX1503	JYSX1505
Operation conditions:
Voltage:	220V±10%，50/60Hz, 8.8A single-phase
Dryer temp	5～25℃
.Ambient humidity	less than 60%
Power of the whole machine:	less than 2kw
Technical specifications:
Type desktop	Console model
Rinse width:	3"×6"～14"×17"
Process time:	95～250s
Develop time:	20～60s
Film feed mode:	U-slot
Film sensing mode	micro switch
Develop temperature:	adjustable 28 -37℃(plus or minus 0.3 )
Developing Capacity:	105p/h (14"17"); 165p/h(10"12")	115p/h (14"17"); 165p/h(10"12")
Dryer temperature:	40～65℃
Channel volume:	Develop\Fixer\Water\each 5.2L	Develop\Fixer\Water\each 8.2L
Washing Control:	Water 2～8L/ minute when rinse
Water developing control mode:	solenoid valve control
Anti-oxidation function:	60mins interval
Anti-crystallization function:	30mins interval
Replenishment:	Auto. /manual 20～200ml/for 0.5s. Q. M
the details of the packing:	wooden case
.the packing out-size(LWH/mm):	1130775750	1130830750
the gross weight of the wooden case :	100KG	110KG

Description

Details

Medical LCD control X-ray film processor JYSX1503 / JYSX1505

 *Entire english menu, Large LCD screen on the washing procedures and data transparent.
 *With automatic monitoring equipment faults, and the use of english as displayed on the panel.
 *Wind road efficient drying system, euan fast processor, the same bright dry up.
 *Non-contact-oriented system to avoid the losers-film-flowers, dicing phenomenon.
 *Machines designed to take full account of the chemical cycle efficiency. The Ad Hol anti-oxidation are covered, together with precise irrigation area added automatic monitoring system so that the unit’s work performance and quality of irrigation to achieve quality and efficient level.

 Technology parameters:

Model of processor :	JYSX1503	JYSX1505
Operation conditions:
Voltage:	220V±10%，50/60Hz, 8.8A single-phase
Dryer temp	5～25℃
.Ambient humidity	less than 60%
Power of the whole machine:	less than 2kw
Technical specifications:
Type desktop	Console model
Rinse width:	3"×6"～14"×17"
Process time:	95～250s
Develop time:	20～60s
Film feed mode:	U-slot
Film sensing mode	micro switch
Develop temperature:	adjustable 28 -37℃(plus or minus 0.3 )
Developing Capacity:	105p/h (14"17"); 165p/h(10"12")	115p/h (14"17"); 165p/h(10"12")
Dryer temperature:	40～65℃
Channel volume:	Develop\Fixer\Water\each 5.2L	Develop\Fixer\Water\each 8.2L
Washing Control:	Water 2～8L/ minute when rinse
Water developing control mode:	solenoid valve control
Anti-oxidation function:	60mins interval
Anti-crystallization function:	30mins interval
Replenishment:	Auto. /manual 20～200ml/for 0.5s. Q. M
the details of the packing:	wooden case
.the packing out-size(LWH/mm):	1130775750	1130830750
the gross weight of the wooden case :	100KG	110KG
