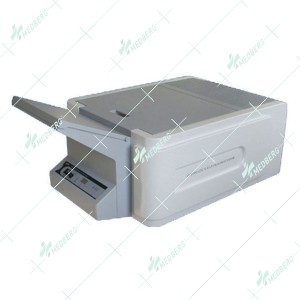

Medical X-ray film processor JYSX1506
1. The operation is simple, reliable control.
2. The immersion blunt, image is clear.
3. Film, continuous washing not reliable card, not laminated any harm.
4. For developing and drying temperature automatic control, continuous adjustable.
5. Automatic and manual rehydration.
6. Important parts of new material, new technology, long service life, easy to clean.
7. Chassis plasticizing, appearance, excellent corrosion resistance.
8. Light weight and power saving, low noise.
9. The electromagnetic valves equipped with water.
10.Controlled by computer, digital display.
11. Prevent light send machine, film completely after box into slice. The operating room
Processing speed |
424mm/min, 339mm/min, 283mm/min (120S 150S, 180S time for Relative whole process) |
Processing ability |
14”×17”53pieces/h, 42pieces/h, 35pieces/h, |
Film width |
356mm(14”) (max) |
Film length |
100mm(4”) (min) |
Automatic temperature control scale |
20~40 developing and fixing 40 ~ 70 drying |
Chemical liquid tank capacity |
8L |
Adding mode |
auto adding by film area |
Noisiness |
<60dB |
Power |
AC 50Hz 220V |
Power consumption |
1.3KW max 3KW |
Water consumption |
2.5 L/min |
Dimensions |
980×660×370mm(L×W×H) |
Weight |
68kg |
