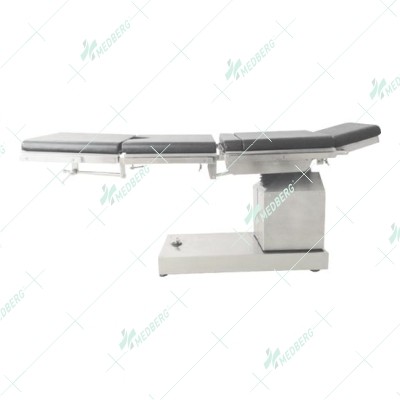

Orthopedic Hydraulic Operating Table: MBI-1201

Being one of the trustworthy manufacturers and suppliers, we offer Orthopedic Hydraulic Operating Tables in which all the operations are performed with the help of cable remote. Manufactured as per set industry norms, the offered table comes with three memory functions that can be set and reset, whenever required. For manufacturing the table, we use quality grade acid-proof stainless steel.

Features:

• Rugged in construction
• Good patient weight capacity
• Manually Interchangeable head and leg sections

Other Details:

• Electrical operated surgical table designed to support Cardiology, Orthopedic, Neurology, Gynecology, Urology and ERCP Procedures
• The table is equipped with a large translucent top providing maximum radiological access & C-ARM functions
• Fully electrically operated table, five sections, radio-translucent table top with eccentric pillars and Die Compressed Base
• Full length C-Arm compatible,having all surgical positions i.e. raising/lowering, trendelenburg, reverse trendelenburg, lateral tilt, flex/re-flex & chair position. Interchangeable head and leg sections (manually)
• All positions operated through cable remote
• Supplied complete with standard accessories and mattress

Specifications:

• Top dimension: L 1900 x W 520 mm
• Height adjustment: 750 mm – 1050 mm
• Trendelenburg / Reverse : 30° / 25°
• Lateral tilt: 20° / 20°
• Kidney elevator: 130 mm
• Back Rest (up / down): 80° / 25°
• Leg Rest (up / down): 15° / 90°
• Head Rest (up / down): 20° / 60°
• Power supply: 24V DC
• Battery Backup: 2 – 3 hours (optional)
• Patient Weight Capacity: 150 kgs
• Mains voltage: AC 220V±10% 50Hz

Ordering Information:
