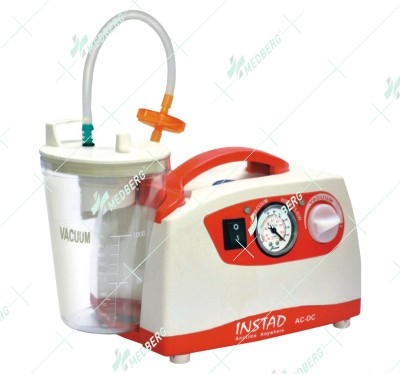

“Medberg” INSTAD AC / DC

INSTAD AC-DC

More Views

“Medberg” INSTAD AC / DC

Code:
Main Applications
  •    Hospital Crash Carts
  •    Patient Transfer
  •    Long Term Home Care
  •    Tracheotomy
  •    EMS / Ambulance
  •    Bed Side
Technical Specifications:
  Housing   ABS Plastic Moulded & 3 Stage LED Indicator for   Battery Status
  Max. Vacuum / LPM   -600 mm Hg, 21 Ltrs / min
  Pump Type   Piston Pump
  Jars   1 x 1 Ltr. PC Jar
  Filter   Bacterial Filter Autoclavable / Reusable
  Tubing   8 mm ID x 2 mtr. (Silicon)
  Vacuum Gauge   5 cm dia 0-760 mm Hg
  Power Supply   220 V AC, 50 / 60 Hz, 70 Watt
  12 V DC Internal Rechargeable Battery
  (12 V 4.5 Amp)
  Battery   Lead Acid (Ni-cd Optional)
  Noise Level   55 dB A ± 3
  Dimensions   39 x 22 x 22 cms
  Net Weight   6 Kg
  Overflow Safety   Mechanical
Accessories / Optional   Car Charger & Power Adaptor (Included)
 Certifications   CE, IEC 60601-1

Ordering Information:
Catalogue No. Model
INAD-21 “Medberg” INSTAD AC / DC

Description

Details

Main Applications
  •    Hospital Crash Carts
  •    Patient Transfer
  •    Long Term Home Care
  •    Tracheotomy
  •    EMS / Ambulance
  •    Bed Side
Technical Specifications:
  Housing   ABS Plastic Moulded & 3 Stage LED Indicator for   Battery Status
  Max. Vacuum / LPM   -600 mm Hg, 21 Ltrs / min
  Pump Type   Piston Pump
  Jars   1 x 1 Ltr. PC Jar
  Filter   Bacterial Filter Autoclavable / Reusable
  Tubing   8 mm ID x 2 mtr. (Silicon)
  Vacuum Gauge   5 cm dia 0-760 mm Hg
  Power Supply   220 V AC, 50 / 60 Hz, 70 Watt
  12 V DC Internal Rechargeable Battery
  (12 V 4.5 Amp)
  Battery   Lead Acid (Ni-cd Optional)
  Noise Level   55 dB A ± 3
  Dimensions   39 x 22 x 22 cms
  Net Weight   6 Kg
  Overflow Safety   Mechanical
Accessories / Optional   Car Charger & Power Adaptor (Included)
 Certifications   CE, IEC 60601-1

Ordering Information:
Catalogue No. Model
INAD-21 “Medberg” INSTAD AC / DC
