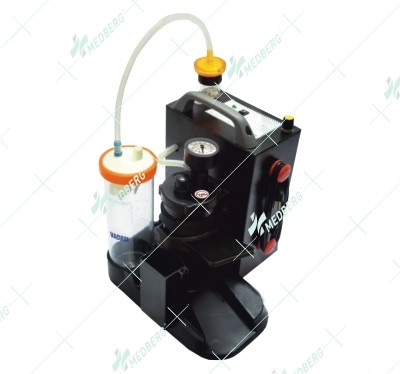

“Medberg” MULTIVAC

More Views

Code:

Main Applications

Technical Specifications:

Housing	MS Powder Coated
Max. Vacuum / LPM	Electrical : -600 mm Hg, 14 Ltrs / min Pedal : 200 ml per stroke
Pump Type	Piston pump
Jars	1 x 1 Ltr. PC Jar
Filter	Bacterial Filter Autoclavable / Reusable
Tubing	8 mm ID x 2 mtr. (Silicon)
Vacuum Gauge	Bourdon type 5 cm dia 0-760 mm Hg
Power Supply	220 V AC, 50 / 60 Hz, 55 Watt, Electric - Pedal 12 V DC Internal Rechargeable Battery (12 V 4.5 Amp)
Battery	Lead Acid (Ni-cd Optional)
Noise Level	55 dB A ± 3
Dimensions	33 x 30 x 41 cms
Net Weight	8.5 Kg
Overflow Safety	Mechanical / Electronic Acoustic Alarm
Accessories / Optional	Car Charger & Power Adaptor (Included)
Certifications	CE, IEC 60601-1

Ordering Information:

Catalogue No.	Model
MLT-14	“Medberg” MULTIVAC

Description

Main Applications

Technical Specifications:

Housing	MS Powder Coated
Max. Vacuum / LPM	Electrical : -600 mm Hg, 14 Ltrs / min Pedal : 200 ml per stroke
Pump Type	Piston pump
Jars	1 x 1 Ltr. PC Jar
Filter	Bacterial Filter Autoclavable / Reusable
Tubing	8 mm ID x 2 mtr. (Silicon)
Vacuum Gauge	Bourdon type 5 cm dia 0-760 mm Hg
Power Supply	220 V AC, 50 / 60 Hz, 55 Watt, Electric - Pedal 12 V DC Internal Rechargeable Battery (12 V 4.5 Amp)
Battery	Lead Acid (Ni-cd Optional)
Noise Level	55 dB A ± 3
Dimensions	33 x 30 x 41 cms
Net Weight	8.5 Kg
Overflow Safety	Mechanical / Electronic Acoustic Alarm
Accessories / Optional	Car Charger & Power Adaptor (Included)
Certifications	CE, IEC 60601-1

Ordering Information:

Catalogue No.	Model
MLT-14	“Medberg” MULTIVAC
