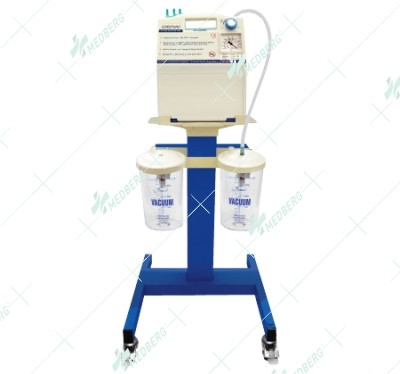

"Medberg" EUROVAC ON TROLLEY

More Views

Code:

Main Applications

Technical Features:

Housing	ABS Plastic Moulded on four castors
Max. Vacuum / LPM	- 575 mm Hg, 45 Ltrs / min
Pump Type	Diaphragm Pump
Jars	2 x 2 Ltr. PC Jar
Filter	Bacterial Filter Autoclavable / Reusable
Tubing	8 mm ID x 2 mtr. (Silicon)
Vacuum Gauge	6.25 cm dia 0-760 mm Hg
Power Supply	220 V AC, 50 / 60 Hz, 90 Watt
Battery	N/A
Noise Level	55 dB A ± 3
Dimensions	48 x 48 x 114 cms
Net Weight	8 Kg + 9 Kg Trolley
Overflow Safety	Mechanical / Electronic Acoustic Alarm
Accessories / Optional	Foot Switch / 110 V on request, 1 or 2 Ltr Disposable Jar with liner
Certifications	CE, IEC 60601-1

Ordering Information:

Catalogue No.	Model
EOV-45	"Medberg" EUROVAC ON TROLLEY

Description

Main Applications

Technical Features:

Housing	ABS Plastic Moulded on four castors
Max. Vacuum / LPM	- 575 mm Hg, 45 Ltrs / min
Pump Type	Diaphragm Pump
Jars	2 x 2 Ltr. PC Jar
Filter	Bacterial Filter Autoclavable / Reusable
Tubing	8 mm ID x 2 mtr. (Silicon)
Vacuum Gauge	6.25 cm dia 0-760 mm Hg
Power Supply	220 V AC, 50 / 60 Hz, 90 Watt
Battery	N/A
Noise Level	55 dB A ± 3
Dimensions	48 x 48 x 114 cms
Net Weight	8 Kg + 9 Kg Trolley
Overflow Safety	Mechanical / Electronic Acoustic Alarm
Accessories / Optional	Foot Switch / 110 V on request, 1 or 2 Ltr Disposable Jar with liner
Certifications	CE, IEC 60601-1

Ordering Information:

Catalogue No.	Model
EOV-45	"Medberg" EUROVAC ON TROLLEY
