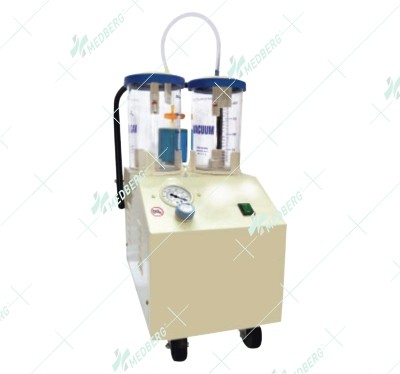

"Medberg" HI-VAC JR

More Views

Code:

Main Applications

Technical Features:

Housing	MS / Stainless Steel on four castorss
Max. Vacuum / LPM	-650 mm Hg, 42 Ltrs / min
Pump Type	Piston Pump
Jars	2 x 2 Ltrs. PC Jar
Filter	Trap Filter
Tubing	10 mm ID x 2 mtr. (PVC)
Vacuum Gauge	6.25 cm dia 0-760 mm Hg
Power Supply	220 V AC, 50 / 60 Hz, 130 Watt
Noise Level	50 dB A ± 3
Dimensions	39 x 31 x 62 cms
Net Weight	15 Kg
Overflow Safety	Dual Mechanical
Accessories / Optional	110 V on request
Certifications	CE, IEC 60601-1


Ordering Information:

Catalogue No.	Model
HV-JR-42	"Medberg" HI-VAC JR

Description

Main Applications

Technical Features:

Housing	MS / Stainless Steel on four castorss
Max. Vacuum / LPM	-650 mm Hg, 42 Ltrs / min
Pump Type	Piston Pump
Jars	2 x 2 Ltrs. PC Jar
Filter	Trap Filter
Tubing	10 mm ID x 2 mtr. (PVC)
Vacuum Gauge	6.25 cm dia 0-760 mm Hg
Power Supply	220 V AC, 50 / 60 Hz, 130 Watt
Noise Level	50 dB A ± 3
Dimensions	39 x 31 x 62 cms
Net Weight	15 Kg
Overflow Safety	Dual Mechanical
Accessories / Optional	110 V on request
Certifications	CE, IEC 60601-1


Ordering Information:

Catalogue No.	Model
HV-JR-42	"Medberg" HI-VAC JR
