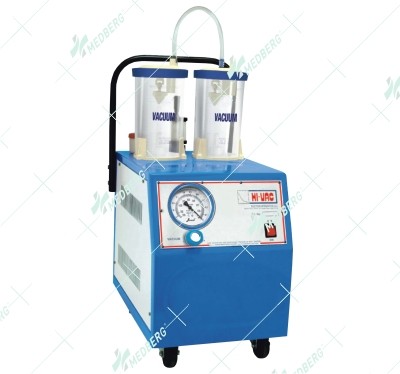

"Medberg" HI-VAC SS

More Views

Code:

Main Applications

Technical Features

Housing	Stainless Steel on four castors
Max. Vacuum / LPM	-700 mm Hg, 50 Ltrs / min
Pump Type	Double Rotary Vane Pump
Jars	2 x 2 Ltrs. PC Jar
Filter	Trap Filter
Tubing	10 mm ID x 2 mtr. (PVC)
Vacuum Gauge	10 cm dia 0-760 mm Hg
Power Supply	220 V AC, 50 / 60 Hz, 380 Watt
Noise Level	50 dB A ± 3
Dimensions	49 x 36 x 70 cms
Net Weight	36 Kg
Overflow Safety	Mechanical
Accessories / Optional	110 V on request
Certifications	CE, IEC 60601-1

Ordering Information:

Catalogue No.	Model
HV-SS-50	"Medberg" HI-VAC SS

Description

Main Applications

Technical Features

Housing	Stainless Steel on four castors
Max. Vacuum / LPM	-700 mm Hg, 50 Ltrs / min
Pump Type	Double Rotary Vane Pump
Jars	2 x 2 Ltrs. PC Jar
Filter	Trap Filter
Tubing	10 mm ID x 2 mtr. (PVC)
Vacuum Gauge	10 cm dia 0-760 mm Hg
Power Supply	220 V AC, 50 / 60 Hz, 380 Watt
Noise Level	50 dB A ± 3
Dimensions	49 x 36 x 70 cms
Net Weight	36 Kg
Overflow Safety	Mechanical
Accessories / Optional	110 V on request
Certifications	CE, IEC 60601-1

Ordering Information:

Catalogue No.	Model
HV-SS-50	"Medberg" HI-VAC SS

Additional Information

Code	No
