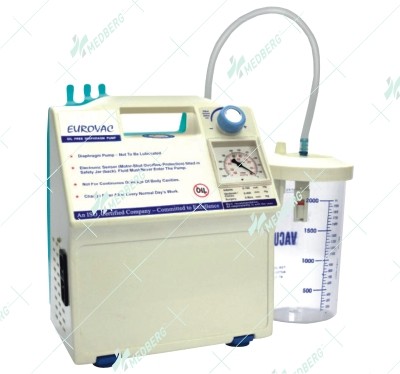

“Medberg” EUROVAC AC

More Views

Code:

Main Applications

Technical Specifications:

Housing	ABS Plastic Moulded
Max. Vacuum / LPM	-575 mm Hg, 45 Ltrs / min
Pump Type	Diaphragm Pump
Jars	1 x 2 Ltr. PC Jar
Filter	Bacterial Filter Autoclavable / Reusable
Tubing	8 mm ID x 2 mtr. (Silicon)
Vacuum Gauge	6.25 cm dia 0-760 mm Hg
Power Supply	220 V AC, 50 / 60 Hz, 90 Watt
Battery	N/A
Noise Level	55 dB A ± 3
Dimensions	43 x 22 x 37 cms
Net Weight	8 Kg
Overflow Safety	Mechanical / Electronic Acoustic Alarm
Accessories / Optional	110 V on request
Certifications	CE, IEC 60601-1

Ordering Information:

Catalogue No.	Model
EUAC-45	“Medberg” EUROVAC AC

Description

Main Applications

Technical Specifications:

Housing	ABS Plastic Moulded
Max. Vacuum / LPM	-575 mm Hg, 45 Ltrs / min
Pump Type	Diaphragm Pump
Jars	1 x 2 Ltr. PC Jar
Filter	Bacterial Filter Autoclavable / Reusable
Tubing	8 mm ID x 2 mtr. (Silicon)
Vacuum Gauge	6.25 cm dia 0-760 mm Hg
Power Supply	220 V AC, 50 / 60 Hz, 90 Watt
Battery	N/A
Noise Level	55 dB A ± 3
Dimensions	43 x 22 x 37 cms
Net Weight	8 Kg
Overflow Safety	Mechanical / Electronic Acoustic Alarm
Accessories / Optional	110 V on request
Certifications	CE, IEC 60601-1

Ordering Information:

Catalogue No.	Model
EUAC-45	“Medberg” EUROVAC AC

Additional Information

Code	No

Reviews

Be the first to review this product
