REFRIGERATION TEST RIG

REFRIGERATION TEST RIG

More Views

REFRIGERATION TEST RIG

Code:

DESCRIPTION:

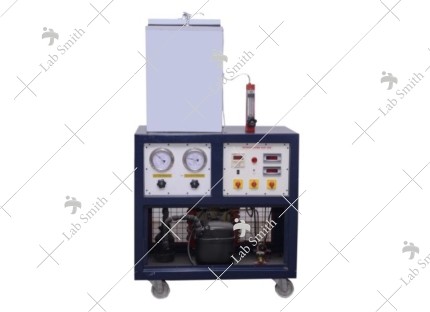

The set up demonstrates the students about the basic principal of a refrigeration cycle. The test rig is designed for the study of thermodynamics of vapour Compression refrigeration cycle by way of demonstration and experimentation. It has a facility to measure various parameters for experimentation.

EXPERIMENTATION:

To calculate refrigerant capacity.
To Study the Vapour Compression refrigerator cycle.
To Calculate Co-efficient of performance and draw P-H Diagram.

UTILITIES REQUIRED:

Electric supply 5A-220 V AC
Water supply and drainage
Floor area : 1.5 m x 1m

TECHNICAL DETAILS:

Compressor	Hermitically sealed compressor.Capacity 1/3 Ton, Kirloskar make.
Agitator	Compatible capacity.
Condenser	Air cooled compatible to 1/3 Ton compressor
Condenser Cooling Fan	Compatible capacity with permanentlubricated motor.
Evaporator	Made of Stainless Steel, Insulated with ceramic wool/puf.
Rotameter	Make Eureka Range 6 to 60 LPH
Expansion Device	Capillary Tube Compatible capacity.
Pressure Gauges	2 Nos.
Safety Control	overload and over current protectors for compressor and Time delay circuit.
Temperature Sensor	RTD PT-100 Type.
Control Panel comprises of
Digital Voltmeter	0-300 V
Digital Ammeter	0-5 Amp.
Temperature Measurement	Digital Temperature Indicator with multi-channel switch.
All Other accessories like Hand shut off valves, filter drier and Thermostat will be provided.
An ENGLISH instruction manual will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JRAC-001A	REFRIGERATION TEST RIG
