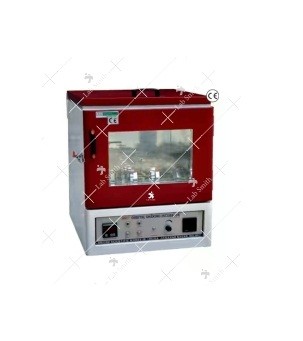

Orbital Shaking Incubator (Heated) -232
(Bench Top Shaker For Above Ambient Temperature)
Applications & Key Features
- Useful for life sciences applications, fermentation Studies, Ageing Tests, Growth Studies and biological cultures under various controlled temperature conditions.
- Advanced shaking mechanism provides quiet shaking and precise speed control with digital display.
- Minimum noise, no vibration and minimal footprint.
- Automatic stop of shaking system when door is opened.
- Stabilized orbital motion under uneven load distribution.
- Various configurations of stainless steel lotus clamps available for Erlenmeyer flasks.
- Interior made of Stainless Steel (304 grade) with a drain-off-facility for spill overs.
- One set of lotus clamp holders with one shaking platform of stainless steel (SS-304) supplied with the unit as a standard accessory.
- Automatic restart at preset speed in case of power failure.
Technical Specifications
- Temperature Control: Microprocessor Based Digital Temperature Indicator-cum-controller with LED display with an in built digital timer and alarm OR Microprocessor Based Digital Temperature Indicator-cum-controller with LCD display
- Temperature Range: Heated Model (Ambient +5OC to 60OC) & Refrigerated Model (Ambient +5OC to 60OC)
- MOC Outer: Powder Coated CRC Steel Sheet
- MOC Inner: Chamber and shaking platform made of stainless steel (SS-304)
- Type: Forced Convection Type
- Temperature Accuracy: +10C
- RPM Range: Upto 250rpm
- Shaking Amplitude: 25mm
- Insulation: High Density mineral wool insulation for tighter temperature controls
- Safety: Over temperature limiter switch prevents overheating
- Drive: Permanent Magnet DC Drive for continuous operations.
- Shaking Trays Size: 450mm x 450mm
- Shaking control: Stepless Continuously variable Speed Control System
- Shaking Motion: Orbital
- RPM Display: Digital
- Power Supply: 230V AC, 50/60Hz
Ordering Information:
|
Cat. No.
|
Temperature Range
|
|
LI-11400/1
|
Orbital Shaking Incubator, Heated Model
|
|
LI-11400/2
|
Orbital Shaking Incubator, Refrigerated Model
|
Options:
|
Cat. No.
|
Options
|
|
LI-11401/1
|
Interior illumination Arrangement through a pair of CFL |
|
LI-11401/2
|
Chamber sterilization through a U.V. germicidal tube
|
|
LI-11401/3
|
Communication port with interface and data cable to download data to your PC.
|
|
LI-11401/4
|
Servo Voltage Stabilizer (Cap : 4 KVA)
|
|
LI-11401/5
|
Spare lotus clamps made of S.S
|
