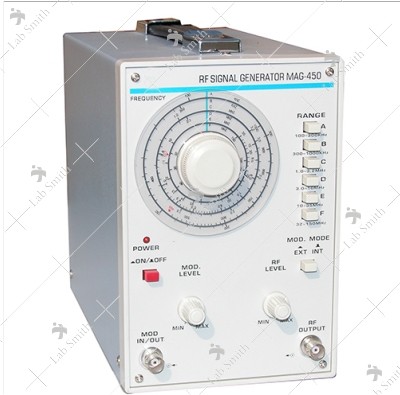

Rf Signal Generator 100Khz -150Mhz (Analog)

Rf Signal Generator 100Khz -150Mhz (Analog)

More Views

Rf Signal Generator 100Khz -150Mhz (Analog)

Code:
We are an eminent supplier of Rf Signal Generator 100Khz -150Mhz (Analog) to our highly valued clients. It is precisely designed using high grade raw material at our vendors’ unit as per the industrial set norms and standards. We conduct various quality tests prior to dispatch at our unit to make sure that Rf Signal Generator 100Khz -150Mhz (Analog) is free from any quality compromise. This has thus gained us highly increasing demands from our clients leading to high rising demands among that of our competitors.
Features :
  • A low cost signal source for laboratory use
  • Output Waveform: Sine and Amplitude modulation wave
  • RF/AM output, max, intensity > 10V p-p
  • External modulation signal can be set between 50Hz~20kHz
Technical Specifications :
Frequency range A - 100kHz ~300kHz
B - 300kHz ~1MHz
C - 1MHz ~ 3.2MHz
D - 3MHz ~ 10MHz
E - 10MHz ~ 35MHz
F - 32MHz ~ 150MHz
Frequency range 100kHz~150MHz(3rd harmonic wave up to 450MHz)
Frequency accuracy ±3%
Output waveform RF/AM signal waveform
Output impedance 600ohms
Radio frequency  Over 100mVrms (when frequency <35MHz)
Level control 1mV~100mV
Internal modulation 1kHz ± 2% >2Vrms output
External modulation 50Hz ~ 20kHz for any setting
Power requirement 220 VAC +10% , 50 Hz
Weight 2.0Kg Approx.

Standard Accessories :
Power cable, BNC to Crocodile Clip Probes - 1No & BNC to BNC Probe 1No.
Instruction manual

Ordering Details:
Catalogue No. Description
LTM-5005 Rf Signal Generator 100Khz -150Mhz (Analog)

Description

Details

We are an eminent supplier of Rf Signal Generator 100Khz -150Mhz (Analog) to our highly valued clients. It is precisely designed using high grade raw material at our vendors’ unit as per the industrial set norms and standards. We conduct various quality tests prior to dispatch at our unit to make sure that Rf Signal Generator 100Khz -150Mhz (Analog) is free from any quality compromise. This has thus gained us highly increasing demands from our clients leading to high rising demands among that of our competitors.
Features :
  • A low cost signal source for laboratory use
  • Output Waveform: Sine and Amplitude modulation wave
  • RF/AM output, max, intensity > 10V p-p
  • External modulation signal can be set between 50Hz~20kHz
Technical Specifications :
Frequency range A - 100kHz ~300kHz
B - 300kHz ~1MHz
C - 1MHz ~ 3.2MHz
D - 3MHz ~ 10MHz
E - 10MHz ~ 35MHz
F - 32MHz ~ 150MHz
Frequency range 100kHz~150MHz(3rd harmonic wave up to 450MHz)
Frequency accuracy ±3%
Output waveform RF/AM signal waveform
Output impedance 600ohms
Radio frequency  Over 100mVrms (when frequency <35MHz)
Level control 1mV~100mV
Internal modulation 1kHz ± 2% >2Vrms output
External modulation 50Hz ~ 20kHz for any setting
Power requirement 220 VAC +10% , 50 Hz
Weight 2.0Kg Approx.

Standard Accessories :
Power cable, BNC to Crocodile Clip Probes - 1No & BNC to BNC Probe 1No.
Instruction manual

Ordering Details:
Catalogue No. Description
LTM-5005 Rf Signal Generator 100Khz -150Mhz (Analog)
