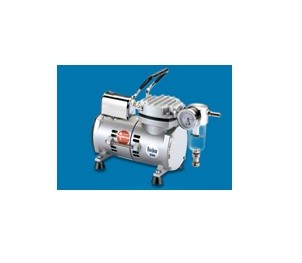

ROCKYVAC^TM Vacuum Pump

Rocker is a piston powered and oil free vacuum pump. It contains a moisture trap/vacuum regulator. With light weight ROCKER is not only suitable for liquid filtration but also perfect for stack or ambient gas sampling.

Features:

Compact, Light, Aluminium die cost construction.
Oil free, Piston Powered.
Used for Liquid filleration for microbiology, suspended solid test, air sampling etc.

Catalogue No.	Model	Packing
SP-736-750	Rocker 300	1
SP-736-800	Rocker 400	1
SP-736-950	Rocker 600	1
SP-737-000	Rocker 410	1
SP-737-050	Rocker 610	1
SP-737-100	Rocker 300 DC	1

Specification	Rockyvac^TM300	Rockyvac^TM400	Rockyvac^TM600	Rockyvac^TM410	Rockyvac^TM610	Rockyvac^TM300
Power	220V / 50Hz	220V / 50Hz	220V / 50Hz	220V / 50Hz	220V / 50Hz	300V DC
Max Power (W)	60 (W)	80 (W)	190 (W)	80 (W)	190 (W)	35 (W)
Max.Vaccum	-650 mmHg	-650 mmHg	-650 mmHg	-750 mmHg	-750 mmHg	650 mmHg
0 mmHg	17 I/min	34 I/min	58 I/min	19 I/min	33 I/min	24 I/min
100 mmHg	14 I/min	31 I/min	52 I/min	18 I/min	30 I/min	20 I/min
200 mmHg	12 I/min	29 I/min	46 I/min	16 I/min	27 I/min	17 I/min
300 mmHg	9.5 I/min	23 I/min	40 I/min	14 I/min	25 I/min	13 I/min
400 mmHg	7 I/min	19 I/min	30 I/min	11 I/min	20 I/min	10 I/min
500 mmHg	4.5 I/min	13 I/min	16 I/min	9 I/min	14 I/min	6 I/min
600 mmHg	1.5 I/min	4 I/min	6 I/min	6 I/min	12 I/min	2 I/min
Motor Rotation	1450 RPM	1450 RPM	1450 RPM	1450 RPM	1450 RPM	1800 RPM
Capacitance	2 μF 450V	3 μF 450V	5 μF 450V	3 μF 450V	5 μF 450V	-
Horse Power	1/8 HP	1/6 HP	1/4 HP	1/6 HP	1/4 HP	1/8 HP
Net Wt.	4.1kg	5.2kg	7.6 kg	5.2kg	7.6 kg	3.5 kg
Port Thread	5/16”	5/16”	5/16”	5/16”	5/16”	5/16”
Noise Level	50 db	50 db	52 db	52 db	52 db	52 db

Description

Details

ROCKYVAC^TM Vacuum Pump

Features:

Compact, Light, Aluminium die cost construction.
Oil free, Piston Powered.
Used for Liquid filleration for microbiology, suspended solid test, air sampling etc.

Catalogue No.	Model	Packing
SP-736-750	Rocker 300	1
SP-736-800	Rocker 400	1
SP-736-950	Rocker 600	1
SP-737-000	Rocker 410	1
SP-737-050	Rocker 610	1
SP-737-100	Rocker 300 DC	1

Specification	Rockyvac^TM300	Rockyvac^TM400	Rockyvac^TM600	Rockyvac^TM410	Rockyvac^TM610	Rockyvac^TM300
Power	220V / 50Hz	220V / 50Hz	220V / 50Hz	220V / 50Hz	220V / 50Hz	300V DC
Max Power (W)	60 (W)	80 (W)	190 (W)	80 (W)	190 (W)	35 (W)
Max.Vaccum	-650 mmHg	-650 mmHg	-650 mmHg	-750 mmHg	-750 mmHg	650 mmHg
0 mmHg	17 I/min	34 I/min	58 I/min	19 I/min	33 I/min	24 I/min
100 mmHg	14 I/min	31 I/min	52 I/min	18 I/min	30 I/min	20 I/min
200 mmHg	12 I/min	29 I/min	46 I/min	16 I/min	27 I/min	17 I/min
300 mmHg	9.5 I/min	23 I/min	40 I/min	14 I/min	25 I/min	13 I/min
400 mmHg	7 I/min	19 I/min	30 I/min	11 I/min	20 I/min	10 I/min
500 mmHg	4.5 I/min	13 I/min	16 I/min	9 I/min	14 I/min	6 I/min
600 mmHg	1.5 I/min	4 I/min	6 I/min	6 I/min	12 I/min	2 I/min
Motor Rotation	1450 RPM	1450 RPM	1450 RPM	1450 RPM	1450 RPM	1800 RPM
Capacitance	2 μF 450V	3 μF 450V	5 μF 450V	3 μF 450V	5 μF 450V	-
Horse Power	1/8 HP	1/6 HP	1/4 HP	1/6 HP	1/4 HP	1/8 HP
Net Wt.	4.1kg	5.2kg	7.6 kg	5.2kg	7.6 kg	3.5 kg
Port Thread	5/16”	5/16”	5/16”	5/16”	5/16”	5/16”
Noise Level	50 db	50 db	52 db	52 db	52 db	52 db
