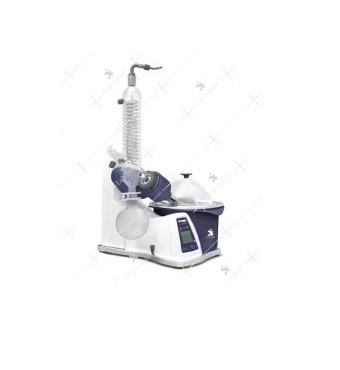

Rotary Vacuum Evaporator With Heating Bath "Rotavac" -191 (DR)

Applications & Key Features

• Easy to read large digital LCD screen displays heating temperature, rotation speed and timing Speed range from 20 to 280 rpm
• Water-oil heating bath with heating temperature range of RT to 180°C
• Heating bath with precise temperature control and adjustable safety circuit
• Designed a detachable operating panel allows remote control
• Patented condenser (cooling surface 1500 cm²) with excellent cooling effect
• Motorized lift with quick-action, automatic release evaporating flask to top position in case of power failure
• Adjustable final position recognition to protect operator and sample against breakage
• Evaporating flask with an ejector, convenient to remove
• Available with timer function to precise control processing
• Chemical-resistant double PTFE system and patented pressure spring provide excellent sealing
• PC can control and document all parameters via RS232 interface (USB)

Technical Specifications

• Voltage: 100-240 VAC
• Frequency: 50/60 Hz
• Power: 1400 W
• Motor Principle: DC brushless Motor
• Speed Range          : 20-280 rpm
• Speed Display: LCD
• Reversible Direction of Rotation: Yes
• Heating Temperature Range: RT-180^oC
• Heat Control Accuracy: ±1^oC
• Heat Output: 1300 W
• Temperature Display: LCD
• Lift: Motor
• Stroke: 150 mm
• Timer: Yes
• Timer Display: LCD
• Time Setting Range: 1-999 min
• Overall Dimensions (D × W × H): 420 × 400 × 580 mm
• Permissible Ambient Temperature: 5^oC - 40^oC
• RS 232 Interface: Yes
