DESCRIPTION:

RTD Reactions:

Real reactors do not satisfy the idealized flow patterns, back mix flow or plug flow deviation from ideality can be due to channeling of fluid through the vessel, recycling of fluid within the vessel or due to the presence of stagnant region or pockets of fluid in the vessel. To predict the exact behaviour of a vessel as a Chemicals reactor, RTD or stimulus response technique is used.

The setup consists of overhead feed tank through which water is fed to the reactor. The flow rate can be adjusted by operating the needle valve and measured by Rotameter. The continuously stirred tank reactor made of Stainless Steel is provided for understanding the R.T.D. characteristics.

EXPERIMENTATION:

1. To plot RTD curve for a CSTR. Using pulse tracer.
2. To determine the Dispersion No.

UTILITIES REQUIRED:

• Water Supply.
• Floor Drain.
• Electricity Supply: 1 Phase, 220 V AC, 0.5 kW.
• Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted.

TECHNICAL DETAILS:

Ordering Details:

JICRE-014B

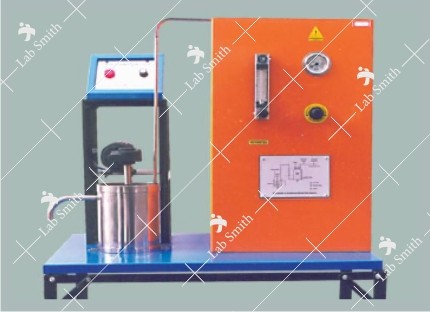

RTD STUDIES IN CONTINUOUS STIRRED TANK REACTOR
(Constant Head Feed System)
