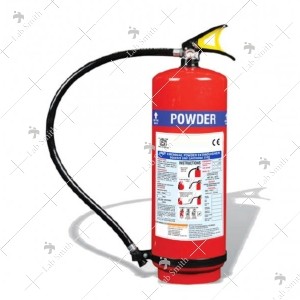

Saviour Fire Extinguisher BC 9 Kg.

More Views

Code:

Saviour Fire Extinguisher BC 9 Kg. [Stored Pressure]

BC 4 Kg, 6 Kg, 9 Kg Fire Extinguisher Sodium Bi Carbonate Mono Ammonium Phosphate Powder, Stored Pressure Type with Pressure Gauge, Controllable discharge mechanism with Nozzle. Nitrogen Pressurised Squeeze Grip Type Valve , Discharge Hose & Nozzle.Operating Temperature : (-) 20o C (+) 55 o C

Catalogue No	LSFIPBC-9
Compliance	Powder Coated as per IS:15683 ISI Marked Fire Extinguishers
Fire Rating	55B
Complete Weight (Kg)	13.3 kg
Empty Weight (Kg)	4.3 kg
Overall Height (Mm)	602 mm
Operating Temperature (C)	-20 C to +55 C
Diameter Of Cylinder (Mm)	180+-10 mm
Range Of Discharge (Mtr)	2 mtr
Duration Of Discharge (Sec)	8 sec
Test Pressure (Min)	35 Bar
Working Pressure	15 Bar
Burst Pressure (Min)	55 Bar

Description

Saviour Fire Extinguisher BC 9 Kg. [Stored Pressure]

BC 4 Kg, 6 Kg, 9 Kg Fire Extinguisher Sodium Bi Carbonate Mono Ammonium Phosphate Powder, Stored Pressure Type with Pressure Gauge, Controllable discharge mechanism with Nozzle. Nitrogen Pressurised Squeeze Grip Type Valve , Discharge Hose & Nozzle.Operating Temperature : (-) 20o C (+) 55 o C

Catalogue No	LSFIPBC-9
Compliance	Powder Coated as per IS:15683 ISI Marked Fire Extinguishers
Fire Rating	55B
Complete Weight (Kg)	13.3 kg
Empty Weight (Kg)	4.3 kg
Overall Height (Mm)	602 mm
Operating Temperature (C)	-20 C to +55 C
Diameter Of Cylinder (Mm)	180+-10 mm
Range Of Discharge (Mtr)	2 mtr
Duration Of Discharge (Sec)	8 sec
Test Pressure (Min)	35 Bar
Working Pressure	15 Bar
Burst Pressure (Min)	55 Bar
