- Description
-
Details

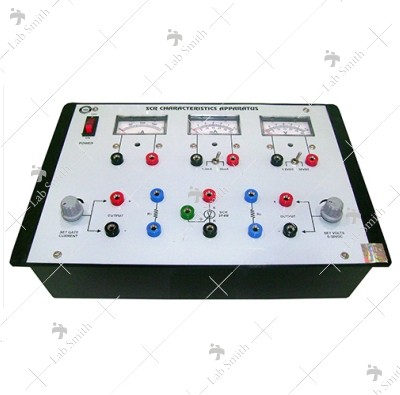

We are counted among the trusted supplier of SCR Characteristics Apparatus to our widely spread clients. We obtain it from our trusted vendors who make use of best quality material and machinery in its fabrication. It goes through various quality tests at our unit prior to dispatch to make sure that SCR Characteristics Apparatus stands in sync with the industrial global norms and standards. We have hence gained highly increasing demands from both domestic as well as overseas clients. It can be availed from us at highly competitive prices.Objective:-
Plot anode current Vs anode cathode voltage characteristics, gate -
characteristics (open gate) and (gate connected)
Technical Specifications:Inbuilt Variable DC Regulated Power Supplies Output voltages 0-30V DC, 0-1.2 V DC On Board Analog Moving Coil Meters (60 mm x 35 mm ) Voltmeter 0-1.2V/0-30V (of dual range). Ammeter 0-200MicroADC, 0-1.2/0-30mA(Dual range) SCR 2P4M Power requirement 230 VAC 10%, 50Hz. Weight 2.0Kg Approx. Dimensions (mm) 330( L) x 225(B) x 75(H) High quality Aluminum used as front panel of 300mm x 220mm& mounted on light weight shock proof plastic cabinet Symbol diagram printed on Aluminum Front Panel &all important test Points are brought out on front panel.
Ordering Details:Catalogue No. Description LEC-3015 SCR Characteristics Apparatus -
- Additional Information
-
Additional Information
Code No - Reviews
-
