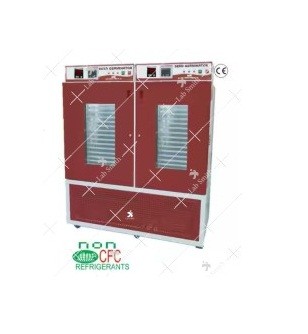

Seed Germinator Dual Chamber 124

More Views

Seed Germinator Dual Chamber 124

Code:

Seed Germinator Dual Chamber 124

Applications:

  • Germinators are useful for seed testing, biological studies, forestry research works etc.
  • With a solid see thru double walled door and a full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without distributing the process temperature.
  • Excellent quality magnetic gum packing door gasket for external door.
  • User-oriented design of shelves makes you adjust each space of shelves without difficulty.
  • Forced air circulation at triple walled back by durable coaxial blower, maintains optimum temperature uniformity and homogeneity.
  • High grade PUF Insulation between outer and inner chamber for minimal thermal losses.
  • Caster wheel mounted for easy portability.
  • Front double walled door is provided with lock and key arrangement.
  • Door operated illumination lamp is fitted inside the chamber for easy visibility.
  • Finned tube evaporator facilitates uniform and faster cooling effects.
  • Safety Thermostate to prevent overheating.
  • Fitted with Electronic Digital Voltmeter.

Technical Specifications:

  • MOC Inner: Chamber and trays made of Stainless Steel (SS-304)
  • MOC Outer: Powder coated CRC Steel Sheet
  • Temperature Range: Ambient +5 OC to 60 OC in one chamber And 5OC to 60 OC in other chamber for LED Display & 5OC to 60 OC in LCD Display
  • Controller: Fitted with Microprocessor based Digital Temperature Indicator-cum-controller with LED Display for Set Value (SV) & Process Value(PV) Or Controller with LCD Display (as per ordered)
  • Display: LED Display for set value and process value
  • Accuracy : +1OC
  • Type : Forced Convection Type
  • Freezer Compressor: Hermetically sealed air cooling compressor system
  • Evaporator : Finned tube evaporator for faster cooling effects.
  • Safety : Over temperature limiter switch prevents overheating
  • Insulation : High density PUF insulation for tighter temperature controls.
  • Humidity : Created in a SS water reservoir fitted at the bottom to provide 90% to 95% +3%RH (Not Adjustable)
  • Electric Supply : 220/230V AC, 50/60Hz

Ordering Information:

Microprocessor Digital Controller with LED Display

Cat No.

Capacity (ltrs.)

Volume

Inner Dimension

(Each Chamber)

No. of Shelves

LI-17300/1

Seed Germinator Dual Chamber,342ltrs

12.2 Cuft

505 x 415 x 830mm x 2 Chamber

6+6

LI-17300/2

Seed Germinator Dual Chamber,560ltrs

20 Cuft

570 x 550 x 875mm x 2 Chamber

8+8

LI-17300/3

Seed Germinator Dual Chamber,616ltrs

22 Cuft

555 x 605 x 910mm x 2 Chamber

14+14



Microprocessor Digital Controller with LCD Display

Cat No.

Capacity (ltrs.)

Volume

Inner Dimension

(Each Chamber)

No. of Shelves

LI-17300/4

Seed Germinator Dual Chamber,342ltrs

12.2 Cuft

505 x 415 x 830mm x 2 Chamber

6+6

LI-17300/5

Seed Germinator Dual Chamber,560ltrs

20 Cuft

570 x 550 x 875mm x 2 Chamber

8+8

LI-17300/6

Seed Germinator Dual Chamber,616ltrs

22 Cuft

555 x 605 x 910mm x 2 Chamber

14+14

Note: Prices are different as per the cooling in single chamber or double chambers

Options:

Cat No.

Option

LI-17301/1

 Exterior illumination with fluorescent tubes and 0-24 timer to control cyclic illumination

 conditions. (cost for each chamber)

LI-17301/2

 0-24 Hrs cyclic timer to control cyclic illumination conditions. (cost for each chamber)

LI-17301/3

 Communication Port with interface and data cable to download data to your PC. (cost

 for each chamber)

LI-17301/4

 Humidity generation and control arrangement through a DIGITAL HUMIDITY INDICATOR

 -CUM-CONTROLLER from 55% RH to 95% at cool temperature. (cost for each chamber)

LI-17301/5

 Servo Stabilizer to cost extra.
