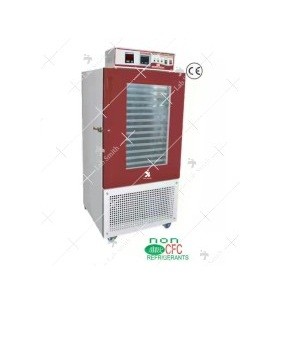

Seed Germinator Single Chamber -123

Seed Germinator Single Chamber -123

More Views

Seed Germinator Single Chamber -123

Code:

Seed Germinator Single Chamber -123

Applications:

Germinators are useful for seed testing, biological studies, forestry research works etc.
With a solid see thru double walled door and a full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without distributing the process temperature.
Excellent quality magnetic gum packing door gasket for external door.
User oriented design of shelves makes you adjust each space of shelves without difficulty.
Forced air circulation at triple walled back by durable coaxial blower, maintains optimum temperature uniformity and homogeneity.
High grade PUF Insulation between outer and inner chamber for minimal thermal losses.
Caster wheel mounted for easy portability.
Front double walled door is provided with lock and key arrangement.
Door operated illumination lamp is fitted inside the chamber for easy visibility.
Finned tube evaporator facilitates uniform and faster cooling effects.
Safety Thermostate to prevent overheating.

Constructional and Salient Feature:

Front double walled door is provided with lock and key arrangement.
Door operated illumination lamp is fitted inside the chamber for easy visibility.
Finned tube evaporator facilitates uniform and faster cooling effects.
Safety Thermostate to prevent overheating.

Technical Specifications:

MOC Inner: Chamber and trays made of Stainless Steel (SS-304)
MOC Outer: Powder coated CRC Steel Sheet
Type : Forced Convection Type
Freezer Compressor: Hermetically sealed air cooling compressor system
Temperature Range: 5^OC to 60 ^OC
Accuracy : +1^OC
Controller : Fitted with Microprocessor based Digital Temperature Indicator- cum-controller with LED Display for Set Value (SV) & Process Value(PV) Or Microprocessor Based alphanumeric LCD Display Controller
Humidity : Created in a S.S. water reservoir fitted at the bottom to provide 90% to 95% +3%RH
Electric Supply : 220/230V AC, 50/60Hz

Ordering Information:

Microprocessor Digital Controller with LED Display

Cat No.	Capacity (ltrs.)	Volume	Dimension(WxDxH)	No. of Shelves
LI-17100/1	Seed Germinator Single Chamber,112ltrs	4 Cuft	455X410X610	4
LI-17100/2	Seed Germinator Single Chamber,171ltrs	6.1 Cuft	505X415X830	6
LI-17100/3	Seed Germinator Single Chamber,280ltrs	10 Cuft	570X550X875	8
LI-17100/4	Seed Germinator Single Chamber,340ltrs	12 Cuft	650x580x900	14
LI-17100/5	Seed Germinator Single Chamber,420ltrs	15 Cuft	700x640x900	14
LI-17100/6	Seed Germinator Single Chamber,450ltrs	16 Cuft	700x640x970	14
LI-17100/7	Seed Germinator Single Chamber,500ltrs	18 Cuft	700x640x1100	16
LI-17100/8	Seed Germinator Single Chamber,560ltrs	20 Cuft	700x700x1100	16

Microprocessor Digital Controller with LCD Display

Cat No.	Capacity (ltrs.)	Volume	Dimension(WxDxH)	No. of Shelves
LI-17100/9	Seed Germinator Single Chamber,112ltrs	4 Cuft	455X410X610	4
LI-17100/10	Seed Germinator Single Chamber,171ltrs	6.1 Cuft	505X415X830	6
LI-17100/11	Seed Germinator Single Chamber,280ltrs	10 Cuft	570X550X875	8
LI-17100/12	Seed Germinator Single Chamber,340ltrs	12 Cuft	650x580x900	14
LI-17100/13	Seed Germinator Single Chamber,420ltrs	15 Cuft	700x640x900	14
LI-17100/14	Seed Germinator Single Chamber,450ltrs	16 Cuft	700x640x970	14
LI-17100/15	Seed Germinator Single Chamber,500ltrs	18 Cuft	700x640x1100	16
LI-17100/16	Seed Germinator Single Chamber,560ltrs	20 Cuft	700x700x1100	16

With Humidity Control Arrangement with LCD Display

Cat No.	Capacity (ltrs.)	Volume	Dimension(WxDxH)	No. of Shelves
LI-17100/17	Seed Germinator Single Chamber,112ltrs	4 Cuft	455X410X610	4
LI-17100/18	Seed Germinator Single Chamber,171ltrs	6.1 Cuft	505X415X830	6
LI-17100/19	Seed Germinator Single Chamber,280ltrs	10 Cuft	570X550X875	8
LI-17100/20	Seed Germinator Single Chamber,340ltrs	12 Cuft	650x580x900	14
LI-17100/21	Seed Germinator Single Chamber,420ltrs	15 Cuft	700x640x900	14
LI-17100/22	Seed Germinator Single Chamber,450ltrs	16 Cuft	700x640x970	14
LI-17100/23	Seed Germinator Single Chamber,500ltrs	18 Cuft	700x640x1100	16
LI-17100/24	Seed Germinator Single Chamber,560ltrs	20 Cuft	700x700x1100	16

Options:

Cat No.	Option
LI-17101/1	Exterior illumination with fluorescent tubes
LI-17101/2	0-24 hrs cyclic timer to control cyclic illumination conditions.
LI-17101/3	Communication port with interface and data cable to download data to your PC.
LI-17101/4	Humidity generation and control arrangement through a DIGITAL HUMIDITY INDICATOR-CUM-CONTROLLER from 55% RH to 95% at cool temperature.
LI-17101/5	Servo Stabilizer to cost extra.

Description

Details

Seed Germinator Single Chamber -123

Applications:

Germinators are useful for seed testing, biological studies, forestry research works etc.
With a solid see thru double walled door and a full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without distributing the process temperature.
Excellent quality magnetic gum packing door gasket for external door.
User oriented design of shelves makes you adjust each space of shelves without difficulty.
Forced air circulation at triple walled back by durable coaxial blower, maintains optimum temperature uniformity and homogeneity.
High grade PUF Insulation between outer and inner chamber for minimal thermal losses.
Caster wheel mounted for easy portability.
Front double walled door is provided with lock and key arrangement.
Door operated illumination lamp is fitted inside the chamber for easy visibility.
Finned tube evaporator facilitates uniform and faster cooling effects.
Safety Thermostate to prevent overheating.

Constructional and Salient Feature:

Front double walled door is provided with lock and key arrangement.
Door operated illumination lamp is fitted inside the chamber for easy visibility.
Finned tube evaporator facilitates uniform and faster cooling effects.
Safety Thermostate to prevent overheating.

Technical Specifications:

MOC Inner: Chamber and trays made of Stainless Steel (SS-304)
MOC Outer: Powder coated CRC Steel Sheet
Type : Forced Convection Type
Freezer Compressor: Hermetically sealed air cooling compressor system
Temperature Range: 5^OC to 60 ^OC
Accuracy : +1^OC
Controller : Fitted with Microprocessor based Digital Temperature Indicator- cum-controller with LED Display for Set Value (SV) & Process Value(PV) Or Microprocessor Based alphanumeric LCD Display Controller
Humidity : Created in a S.S. water reservoir fitted at the bottom to provide 90% to 95% +3%RH
Electric Supply : 220/230V AC, 50/60Hz

Ordering Information:

Microprocessor Digital Controller with LED Display

Cat No.	Capacity (ltrs.)	Volume	Dimension(WxDxH)	No. of Shelves
LI-17100/1	Seed Germinator Single Chamber,112ltrs	4 Cuft	455X410X610	4
LI-17100/2	Seed Germinator Single Chamber,171ltrs	6.1 Cuft	505X415X830	6
LI-17100/3	Seed Germinator Single Chamber,280ltrs	10 Cuft	570X550X875	8
LI-17100/4	Seed Germinator Single Chamber,340ltrs	12 Cuft	650x580x900	14
LI-17100/5	Seed Germinator Single Chamber,420ltrs	15 Cuft	700x640x900	14
LI-17100/6	Seed Germinator Single Chamber,450ltrs	16 Cuft	700x640x970	14
LI-17100/7	Seed Germinator Single Chamber,500ltrs	18 Cuft	700x640x1100	16
LI-17100/8	Seed Germinator Single Chamber,560ltrs	20 Cuft	700x700x1100	16

Microprocessor Digital Controller with LCD Display

Cat No.	Capacity (ltrs.)	Volume	Dimension(WxDxH)	No. of Shelves
LI-17100/9	Seed Germinator Single Chamber,112ltrs	4 Cuft	455X410X610	4
LI-17100/10	Seed Germinator Single Chamber,171ltrs	6.1 Cuft	505X415X830	6
LI-17100/11	Seed Germinator Single Chamber,280ltrs	10 Cuft	570X550X875	8
LI-17100/12	Seed Germinator Single Chamber,340ltrs	12 Cuft	650x580x900	14
LI-17100/13	Seed Germinator Single Chamber,420ltrs	15 Cuft	700x640x900	14
LI-17100/14	Seed Germinator Single Chamber,450ltrs	16 Cuft	700x640x970	14
LI-17100/15	Seed Germinator Single Chamber,500ltrs	18 Cuft	700x640x1100	16
LI-17100/16	Seed Germinator Single Chamber,560ltrs	20 Cuft	700x700x1100	16

With Humidity Control Arrangement with LCD Display

Cat No.	Capacity (ltrs.)	Volume	Dimension(WxDxH)	No. of Shelves
LI-17100/17	Seed Germinator Single Chamber,112ltrs	4 Cuft	455X410X610	4
LI-17100/18	Seed Germinator Single Chamber,171ltrs	6.1 Cuft	505X415X830	6
LI-17100/19	Seed Germinator Single Chamber,280ltrs	10 Cuft	570X550X875	8
LI-17100/20	Seed Germinator Single Chamber,340ltrs	12 Cuft	650x580x900	14
LI-17100/21	Seed Germinator Single Chamber,420ltrs	15 Cuft	700x640x900	14
LI-17100/22	Seed Germinator Single Chamber,450ltrs	16 Cuft	700x640x970	14
LI-17100/23	Seed Germinator Single Chamber,500ltrs	18 Cuft	700x640x1100	16
LI-17100/24	Seed Germinator Single Chamber,560ltrs	20 Cuft	700x700x1100	16

Options:

Cat No.	Option
LI-17101/1	Exterior illumination with fluorescent tubes
LI-17101/2	0-24 hrs cyclic timer to control cyclic illumination conditions.
LI-17101/3	Communication port with interface and data cable to download data to your PC.
LI-17101/4	Humidity generation and control arrangement through a DIGITAL HUMIDITY INDICATOR-CUM-CONTROLLER from 55% RH to 95% at cool temperature.
LI-17101/5	Servo Stabilizer to cost extra.
