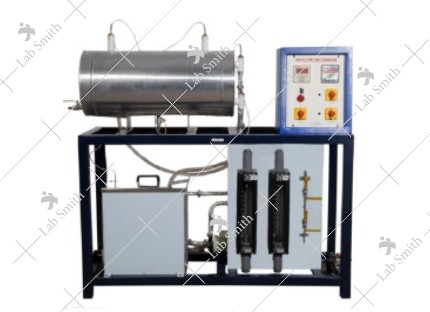

DESCRIPTION:Shell and Tube Heat Exchanger are popular in process industries because they occupy less space and offer reasonable temperature drop. The apparatus consists of fabricated shell, inside which tubes with baffles on outer side are fitted. The present set up is a 1-2 heat exchangers, with cold water flows through shell. Valves are provided to control the flow rates of hot and cold water. Flow rates of hot and cold water are measured using Rotameters. A magnetic drive pump is used to circulate the hot water from a re-cycled type water tank, which is fitted with heaters and Digital Temperature Controller.
EXPERIMENTATION:- To calculate the Rate of Heat Transfer
- To calculate the LMTD.
- To calculate the Overall heat transfer co-efficient.
UTILITIES REQUIRED:- Water supply 20 lit/min (approx.)
- Floor Drain.
- Electricity Supply : 1 Phase, 220 V AC, 4 kW.
- Floor area of 1.5 m x 0.75 m.
TECHNICAL DETAILS :System Water to Water. (1 – 2 shell & tube type) Shell. Material Stainless steel. Insulated with ceramic wool and cladded with aluminum foil.
Dia. 220 mm, Length 500 mm (Approx.)25% cut baffles at 100 mm distance 4 Nos.
Tube OD 16mm approx., Length 500mm (24 Nos.) Water Flow Measurement Rotameters (2Nos.) one each for cold & hot fluid. Hot Water Tank Made of Stainless steel (Insulated with ceramic fibre wool) Hot Water Circulation Magnetic Pump Heaters Nichrome wire heater (2 Nos.) Control panel comprising of Digital Temp. Controller 0-199.9°C, (For Hot Water Tank) Digital Temp. Indicator 0-199.9°C, with multi-channel switch Temperature Sensors RTD PT-100 type-4Nos. With standard make on/off switch, Mains Indicator etc. An ENGLISH instruction manual consisting of experimental procedures, block diagram etc.
will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint. Ordering Details:
Catalogue No Description JIHT-012 SHELL & TUBE HEAT EXCHANGER - Additional Information
-
