SINGLE STAGE AIR COMPRESSOR TEST RIG

SINGLE STAGE AIR COMPRESSOR TEST RIG

More Views

SINGLE STAGE AIR COMPRESSOR TEST RIG

Code:

DESCRIPTION:

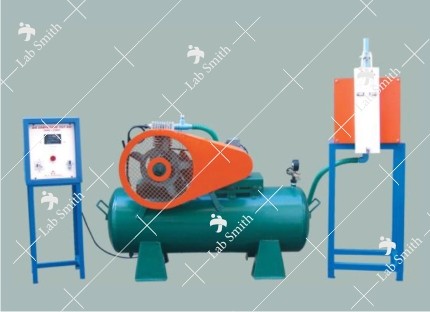

Single Stage Air Compressor Test Rig consists of a single stage reciprocating type air compressor driven by 1 HP motor through a belt. The outlet of the air compressor is connected to reservoir (Tank) and suction is connected to another air tank with an orifice plate and a water manometer. Bellow is fitted on one side of this air tank to regulate the flow. Temperature of inlet and outlet of air and pressure at outlet can be measured by Temperature sensor and pressure gauge.

EXPERIMENTATION:

To calculate the volumetric efficiency.
To calculate isothermal HP.
To calculate compression ratio.

UTILITIES REQUIRED:

Electricity 2 kW, 220V AC, Single Phase.
Floor Area 1.5 x 0.75 m.

TECHNICAL DETAILS:

Compressor	Single Stage, Capacity 4 CFM (max.)Working Pressure 5 kg/cm² max.
Drive	1 HP Crompton make motor
Manifold Tank	Suitable Capacity
Flow Measurement	Orificemeter with Manometer
Temp. Measurement	RTD PT-100 type sensor (2 Nos.)
RPM measurement	RPM Indicator with Proximity sensor
Air Tank	Capacity 90 Ltrs. with safety valve, shut off valve
Pressure Gauge	Bourdon Type
Control Panel Comprises of
Energy measurement	Electronic Energy meter, L&T make.
MCB	For overload protection.
Standard make On/Off Switch, Mains Indicator, etc.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JIHD-156	SINGLE STAGE AIR COMPRESSOR TEST RIG

Description

Details

DESCRIPTION:

Single Stage Air Compressor Test Rig consists of a single stage reciprocating type air compressor driven by 1 HP motor through a belt. The outlet of the air compressor is connected to reservoir (Tank) and suction is connected to another air tank with an orifice plate and a water manometer. Bellow is fitted on one side of this air tank to regulate the flow. Temperature of inlet and outlet of air and pressure at outlet can be measured by Temperature sensor and pressure gauge.

EXPERIMENTATION:

To calculate the volumetric efficiency.
To calculate isothermal HP.
To calculate compression ratio.

UTILITIES REQUIRED:

Electricity 2 kW, 220V AC, Single Phase.
Floor Area 1.5 x 0.75 m.

TECHNICAL DETAILS:

Compressor	Single Stage, Capacity 4 CFM (max.)Working Pressure 5 kg/cm² max.
Drive	1 HP Crompton make motor
Manifold Tank	Suitable Capacity
Flow Measurement	Orificemeter with Manometer
Temp. Measurement	RTD PT-100 type sensor (2 Nos.)
RPM measurement	RPM Indicator with Proximity sensor
Air Tank	Capacity 90 Ltrs. with safety valve, shut off valve
Pressure Gauge	Bourdon Type
Control Panel Comprises of
Energy measurement	Electronic Energy meter, L&T make.
MCB	For overload protection.
Standard make On/Off Switch, Mains Indicator, etc.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JIHD-156	SINGLE STAGE AIR COMPRESSOR TEST RIG
