DESCRIPTION:

Confirming a packed bed of spherical balls of a solid in a vertical tube, and observing its rate of diffusion into stream of air passed across the top of the tube can conveniently study the diffusion of solid into air. The equipment is fitted with a vertical glass column with a mesh near the base of column to hold the spherical balls. Spherical balls of known weight and diameter are filled in the column to make a packed bed. Air is allowed to pass through the silica gel chamber. From the bottom of the column, dry air is allowed to enter in the packed bed.

The present set-up has a facility to interface the system with computer which enables to log the experimental data using computer. The educational software and data-logging package has been developed for unit. The software environment base is of Lab view of NATIONAL INSTRUMENTS, USA. This software is compatible to interfacing unit designed by “Lab Smith”. This software package provides a comprehensive educational software environment within which the investigations can be performed. This software is capable to tabulate the sample readings according to the requirement of experiment under study and results obtained can be compared. The real time data acquisition can be done by interfacing the set-up with computer using software. Software allows the user to have control on data logging, printing the stored data, preparing spread sheets in Excel etc.

EXPERIMENTATION:

• To calculate the mass transfer co-efficient of vaporization of naphthalene in air using a packed bed of spherical particles of naphthalene.
• To plot Sh/Sc 1/3 Vs Re on log 45g graph and determine the functional relationship.

UTILITIES REQUIRED:

• Compressed Air Supply at 2 Bar, 4 CFM.
• Weighing Balance: 0.01 gm resolution.
• Table for setup support.
• Computer System: Pentium IV with DVD Drive, Windows 7, MS-Office pre-loaded. One USB slot required in PC for DATA ACQUISITION CARD.

TECHNICAL DETAILS:

Ordering Details:

JIMT-532

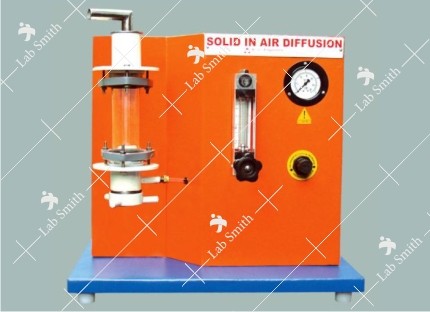

SOLID IN AIR DIFFUSION APPARATUS

With Data Logging Facility
