SOLID LIQUID EXTRACTION (Bonnotto Type)

SOLID LIQUID EXTRACTION (Bonnotto Type)

More Views

SOLID LIQUID EXTRACTION (Bonnotto Type)

Code:
DESCRIPTION:

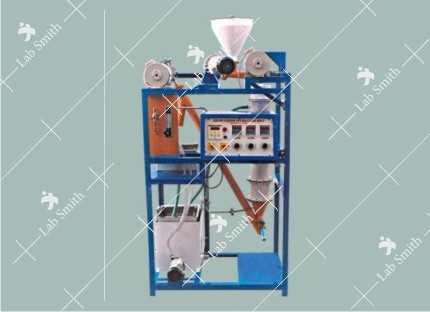

The setup consists of Bonnotto type extractor of slotted circular plates arranged one above the other in opposite radial opening. The solids are introduced at the top through a hopper spread over the top plate by a rack and pushed to slot to fall to the next plate below and so on to the bottom of the column. The solvent is introduced near the bottom of the column and it flow upward counter-currently to the solids. A pump supplies the solvent and flow rate is monitored by means of a Rotameter. At the bottom of column a screw conveyor arrangement is done to remove the extracted solids driven by means of an electric motor. Solvent feed tank is kept in a bath fitted with heater and digital temperature controller is used to maintain the constant temperature.

EXPERIMENTATION:
  • To determine the efficiency of a continuous counter-current Solid-Liquid Extraction system.
UTILITIES REQUIRED:
  • Electricity Supply : 1 Phase, 220 V AC, 3 kW.
  • Solvent :               50 ltrs.
  • Solid      :               30 kg.

TECHNICAL DETAILS:
Extraction Column Material Stainless SteelDia 150 mm, Height 750 mm (approx)
Plates Material Stainless Steel, with Radial opening.
Mixer Stainless Steel Impellers fitted on Stainless SteelShaft coupled to a motor & reduction gear box.
Screw Conveyor Material Stainless Steel, Compatible capacity, housed in GI Pipe and driven by a motor & reduction gear box.
Solvent Flow Measurement Rotameter.
Solvent Tank Made of Stainless Steel, Capacity 30 Ltrs. Double wall.
Feed circulation Magnetic Pump made of Polypropylene to Circulatesolvent. Maximum working temperature is 60°C.
Feed Hopper Suitable capacity.
Heater Nichrome wire heater.
Filtration Sieve Material Stainless Steel.
Receiving Tank for Extracted solid waste Material Stainless Steel, Compatible capacity.
Temperature Sensor RTD PT-100 type.
Control panel comprises of
Digital Temp. Controller 0-200°C, For Feed Tank
With Standard make on/off switch, Mains Indicator etc.
An ENGLISH instruction manual will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:
Catalogue No Description
JIMT-004 SOLID LIQUID EXTRACTION (Bonnotto Type)

Description

Details

DESCRIPTION:
The setup consists of Bonnotto type extractor of slotted circular plates arranged one above the other in opposite radial opening. The solids are introduced at the top through a hopper spread over the top plate by a rack and pushed to slot to fall to the next plate below and so on to the bottom of the column. The solvent is introduced near the bottom of the column and it flow upward counter-currently to the solids. A pump supplies the solvent and flow rate is monitored by means of a Rotameter. At the bottom of column a screw conveyor arrangement is done to remove the extracted solids driven by means of an electric motor. Solvent feed tank is kept in a bath fitted with heater and digital temperature controller is used to maintain the constant temperature.

EXPERIMENTATION:
  • To determine the efficiency of a continuous counter-current Solid-Liquid Extraction system.
UTILITIES REQUIRED:
  • Electricity Supply : 1 Phase, 220 V AC, 3 kW.
  • Solvent :               50 ltrs.
  • Solid      :               30 kg.

TECHNICAL DETAILS:
Extraction Column Material Stainless SteelDia 150 mm, Height 750 mm (approx)
Plates Material Stainless Steel, with Radial opening.
Mixer Stainless Steel Impellers fitted on Stainless SteelShaft coupled to a motor & reduction gear box.
Screw Conveyor Material Stainless Steel, Compatible capacity, housed in GI Pipe and driven by a motor & reduction gear box.
Solvent Flow Measurement Rotameter.
Solvent Tank Made of Stainless Steel, Capacity 30 Ltrs. Double wall.
Feed circulation Magnetic Pump made of Polypropylene to Circulatesolvent. Maximum working temperature is 60°C.
Feed Hopper Suitable capacity.
Heater Nichrome wire heater.
Filtration Sieve Material Stainless Steel.
Receiving Tank for Extracted solid waste Material Stainless Steel, Compatible capacity.
Temperature Sensor RTD PT-100 type.
Control panel comprises of
Digital Temp. Controller 0-200°C, For Feed Tank
With Standard make on/off switch, Mains Indicator etc.
An ENGLISH instruction manual will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:
Catalogue No Description
JIMT-004 SOLID LIQUID EXTRACTION (Bonnotto Type)
