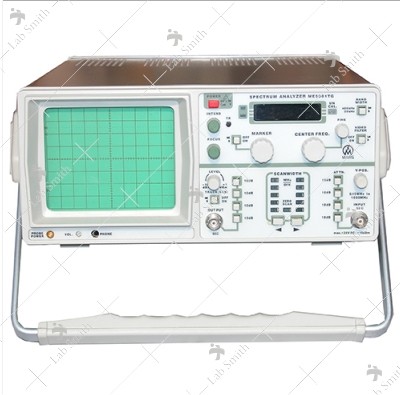

We are a well established supplier of Spectrum Analyzer 1GHz with Tracking Generator to our highly esteemed clients. It is used in scientific industry as per the requirements of varied patrons. We acquire it from our reliable vendors who have been associated with us for years. Tested quality raw material is used in its making along with the help of advanced tools and equipment. Our professionals conduct various inspections to ensure that Spectrum Analyzer 1GHz with Tracking Generator is free from any defects.Features :- ME 5001 - Frequency range 150kHz ~1050MHz
- ME 5001TG - Frequency range 150kHz ~1050MHz (with Tracking Generator)
- 4.5 Digit display center & marker frequency, 0.1MHz resolution
- Amplitude range -100dBm ~ +13dBm
- Filters 20KHz, 250KHz & Video Filter
- AM/FM Demodulator included
- Full range built-in Tracking Generator 150kHz ~ 1050MHz
- Output Power 1dBm to ~ 50dBm (50ohms)
Technical Specifications:Frequency range 150kHz to 1050MHz (-3dB) Frequency resolution 100kHz, Display 4 digit Display accuracy center freq. +100kHz Display accuracy marker 0.1% Span +100kHz Frequency stability <150kHz /hr (Drift) Frequency scan width Zero scan 0Hz/div, and 100kHz in 1-2-5 seq. Frequency scan width accuracy +10% IF bandwidth (-3dB) Resolution 20kHz& 250kHz Video bandwidth VBW 400kHz Sweep time (Fixed) 23ms AmplitudeAmplitude range 100dBm to +13dBm Screen display range 80dB (10dB/div) Reference level -27dBm ~ +13dBm (in 10dB steps) Reference level accuracy +2dB Average noise level -103dBm (250kHz RBW) Frequency response +2dB(Relative to 250MHz, ATTN 10dB) Spurious responses <-75dBc (2 signals, -27dBm (3rd order) Harmonic distortion <-75 dBc (2nd, 3rd) Absolute amplitude accuracy +2.5dB Inter modulation each Freq. Distance >3MHz)
InputInput impedance 50ohms Input connector BNC Input attenuator 0 to 40 dB (4 x 10dB steps) Input attenuator accuracy +2dB / 10dB steps Max input level +10dBm, (0dB attenuation) +20dBm (with 20dB attenuation) DC +25V Tracking Generator (Available in Model ME 5001TG Only)Output frequency range 150kHz ~ 1050MHz Output power level -50dBm , +1dBm(In 10dB steps & fine control) Output attenuator 0 ~ 40 dB (4 x 10dB steps) Output attenuator accuracy +1dB Output flatness +1.5dB (150kHz ~ 1050kHz) Spurious outputs Harmonic & non <20dBc Harmonic spurs Output Impedance 50ohms (BNC female)
MiscellaneousAM/Demodulator : Ear phones, load impedance Included Ear Phones : >8ohms Load Impedance : >8ohms
GeneralDisplay CRT 6 inch, 8 x 10div internal Graticule Trace rotation Adjustable on Front panel Line voltage 220V +10%, 50 to 60 Hz Power consumption Approx. 25W Power requirement 220 VAC +10% , 50 Hz Weight 7.0Kg Approx. Dimensions (mm) 280 (L) x390(B) x 130(H)
Standard Accessories :Power cable, Probe - 2Nos., Ear phone, Instruction manual.Ordering Details:Catalogue No. Description LTM-5035 Spectrum Analyzer 1GHz with Tracking Generator - Additional Information
-
