Spherical Ground Ball/Cup Joints Transparent (BS.2761)

Spherical Ground Ball/Cup Joints Transparent (BS.2761)

More Views

Spherical Ground Ball/Cup Joints Transparent (BS.2761)

Code:

Spherical Ground Ball/Cup Joints Transparent (BS.2761)

Made of Quartz

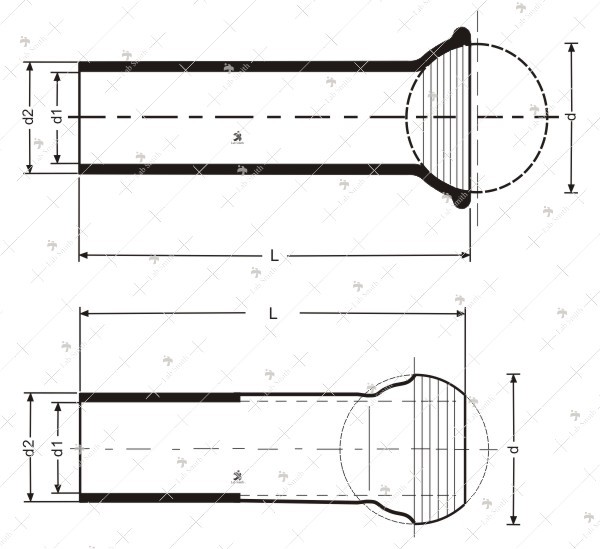

Catalogue No. Spherical
Dia d(mm)		 Bore Dia
dl (mm)		 Dia d2
 (mm)		 Overall
Length
L (mm)
T-628-600 12.700 5 7 100
T-628-700 12.700 5 7 100
T-628-800 19.050 10 12.5 100
T-628-900 19.050 10 12.5 100
T-629-000 28.575 16 19 100
T-629-100 28.575 16 19 100
T-629-200 34.925 23 26 100
T-629-300 34.925 23 26 100
T-629-400 41.275 27 30 110
T-629-500 41.275 27 30 110
T-629-600 50.800 33 37 110
T-629-700 50.800 33 37 110
 Note : Advance by 5 for ball.           Eg. T-628-800 indicate cup for S19

           T-628-900 indicate ball for S19
Description

Details

Spherical Ground Ball/Cup Joints Transparent (BS.2761)

Made of Quartz

Catalogue No. Spherical
Dia d(mm)		 Bore Dia
dl (mm)		 Dia d2
 (mm)		 Overall
Length
L (mm)
T-628-600 12.700 5 7 100
T-628-700 12.700 5 7 100
T-628-800 19.050 10 12.5 100
T-628-900 19.050 10 12.5 100
T-629-000 28.575 16 19 100
T-629-100 28.575 16 19 100
T-629-200 34.925 23 26 100
T-629-300 34.925 23 26 100
T-629-400 41.275 27 30 110
T-629-500 41.275 27 30 110
T-629-600 50.800 33 37 110
T-629-700 50.800 33 37 110
 Note : Advance by 5 for ball.           Eg. T-628-800 indicate cup for S19

           T-628-900 indicate ball for S19
