DESCRIPTION:

Catalytic Reaction:

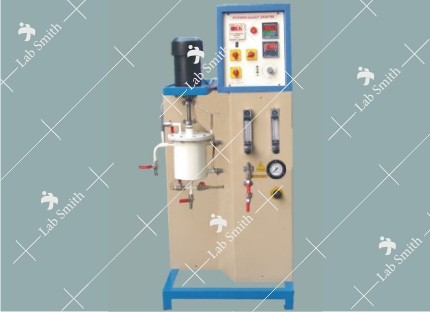

Any catalytic liquid-liquid or liquid-gas reaction involving the use of a catalyst placed in basket can be studies in this set-up. Kinetic parameter of a specific reaction can be estimated & parametric studies can be conducted. The set-up consists of a reactor centrally having one spinning basket derived through a variable speed motor. The metered flow of reactant from feed tank is fed to the reactor at the bottom. The set-up can be used as batch wise of as continuous type. Sampling points are provided for analysis. Port connection for gas inlet is provided at the bottom of the reactor.

EXPERIMENTATION:

• To determine the kinetic parameters for a given reaction.

UTILITIES REQUIRED:

• Water Supply.
• Floor Drain.
• Electricity Supply: 1 Phase, 220 V AC, 0.5 kW.
• Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted.
• Computer System : Pentium IV with DVD Drive, Windows XP, MS-Office XP version pre-loaded. One USB slot required in PC for DATA ACQUISITION CARD.

TECHNICAL DETAILS:


Ordering Details:
