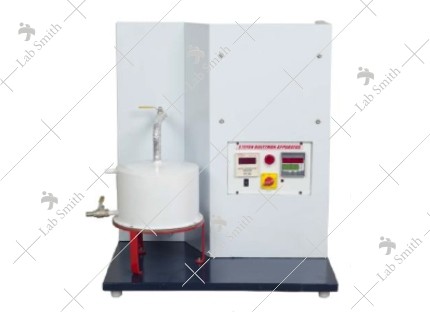

DESCRIPTION:The apparatus is designed to determine the Stefan Boltzmann constant. The apparatus consists of a hemisphere fixed to a Bakelite plate, the outer surface of which forms the jacket to heat it.
Hot water to heat the hemisphere is obtained form a hot water tank, which is fixed above the hemisphere. The copper test disc is introduced at the center of hemisphere. The temperatures of hemisphere and test disc are measured with the help of temperature sensors.
EXPERIMENTATION:- Determination of Stefan Boltzmann constant and study the effect of hemisphere temperature on it.
UTILITIES REQUIRED:- Electricity Supply : 1 Phase, 220 V AC, 2 kW.
- Table for set-up support.
TECHNICAL DETAILS :Hemisphere Dia.- 200 mm (approx.) made of Copper Jacket Dia. 250 mm (approx.) made of Stainless Steel Test Disc Size 20 mm Dia. x 1.5-mm thickness made of Copper Water Tank Stainless steel 12 Ltrs. cap. Heater Nichrome wire immersion heater. Control panel comprises of Digital Temp. Controller 0 to 199.9°C, (for water tank) Digital Temp. Indicator 0 to 199.9°C, with multi channel switch Temp. Sensors RTD PT-100 type-2Nos. Standard make On/Off switch, Mains Indicator etc. An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will beprovided along with the Apparatus The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint. Ordering Details:Catalogue No Description JIHT-072 STEFAN BOLTZMANN'S APPARATUS - Additional Information
-
