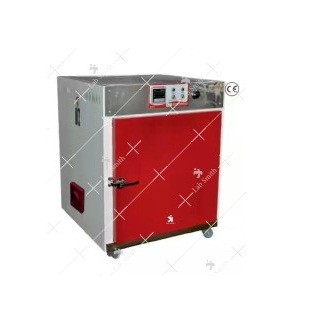

Sterile Dry Heat Sterilizer -212
(With Fresh Air Suction Arrangement Through A Mini-Pleat Hepa Filter)

Applications

• Forced convection system ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber.
• Most ideal for various experiments in microbiology, cell cultivation of animals and plants and food for various laboratories, industries, R & D labs etc.
• Synthetic door gasket made of neoprene on the double walled door.
• User oriented design of shelves makes you adjust each space of shelves without difficulty.
• Adjustable two ventilation slides control inner air/ vapour circulation.
• Beaded heating elements are placed in ribs, at bottom and sides for uniform heat distribution.

Constructional Features

• Outer body made of PCRC sheet duly powder coated.
• Inner chamber and perforated trays made of Stainless Steel (SS-304)
• Space between inner chamber and outer wall is filled with high grade mineral wool for minimal heat dissipation.
• Bigger sized units mounted on caster wheels for easy portability.
• Door fitted with heavy duty hinges and door handle ensuring there are no leakages through the door gasket.
• Confirming to cleanliness level of Class 100 with MINI-PLEAT HEPA FILTER.
• Fresh Air Port : Air is sucked/thrown in through HEPA Filter into the chamber & Exhaust Port is provided for excreation of unclean air.
• To work on 220/230V AV, 50/60 Hz supply.

Technical Specification

• Temperature Range: 50^oC to 250^oC +1^oC
• Forced Convection: Available with forced convection system (Standard Features)
• Temp. Controller: Auto time Control Microprocessor (SAD) With Digital Timer *ADD Prefix SAD to Model
• Regulator: Solid state electronic relay with protective heat sink
• Safety Device: Over temperature limiter switch prevents overheating

Ordering Information:
