DESCRIPTION:

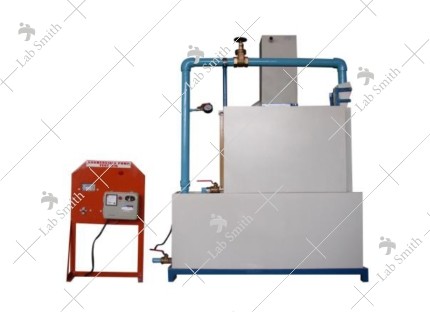

The present Submersible Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Submersible Pump, which is mounted horizontally with sump tank. Flow of fluid is measured by using measuring tank and stop watch.

EXPERIMENTATION:

• To determine total head, pump output, overall efficiency and pump efficiency of the submersiblepump.
• To plot Graph:

             Head vs Discharge

             Pump efficiency vs Discharge

             Pump HP vs Discharge.

UTILITIES REQUIRED:

• Electricity Supply: Single Phase, 220 VAC, 50 Hz, 5-15 amp combined socket with earth connection.
• Water Supply (Initial Fill).
• Floor Drain required.
• Floor Area Required: 1.5m x 0.75m

TECHNICAL DETAILS:

Flow Measurement

Using Measuring Tank (Capacity 90 Ltrs.)

and Electronic Stop Watch
