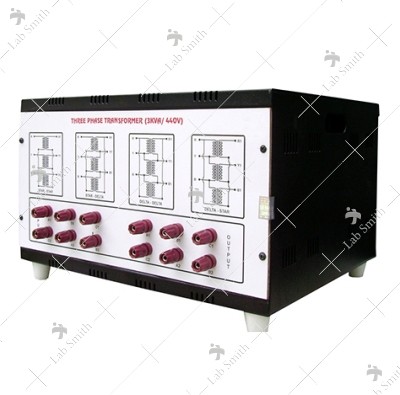

Owing to our rich industrial experience, we have been a reputed supplier of Three Phase Transformer 3KVA 440V Ac Air Cooled to our huge clientele base. It finds application in electrical machine lab as per the requirements of our customers. We procure this transformer from our vendors who have been serving us for years. They use superior quality raw material and latest tools and equipment for its fabrication. Three Phase Transformer 3KVA 440V Ac Air Cooled is hence flawless in nature and stands high on performance.

TECHNICAL SPECIFICATIONS

• Capacity 3 phase, 3 KVA, 440 / 230 Volts, 50 Hz

• Delta - star connection

• Shell type - Oil cooled

• Totally enclosed, maximum ambient temp 45° C

• Insulation Class 'B'

• Tapping on Secondary Side 50% and 86.6%

• Copper Wound

• Educational type Backelite insulated banana terminals 30 Amp. With colour code provided on the top of the transformer and on 6mm backelite sheet.

• The tank will be provided oil filling Hole with cap, oil level indicator, drain plug and earthing terminal

• Plain unidirectional M.S. Roller will be fitted to the tank for movement

• Electrical performance would confirm

• The transformer provided with transformer oil.
